Attribute
Description
Manufacturer Part Number
CSD87352Q5D
Manufacturer
Description
MOSFET 2N-CH 30V 25A 8SON
Manufacturer Lead Time
53 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | 2 N-Channel (Dual) | |
| Drain-Source Breakdown Volts | 30V | |
| Continuous Drain Current at 25C | 25A | |
| Max On-State Resistance | - | |
| Max Threshold Gate Voltage | 1.15V @ 250µA | |
| Gate Charge at Vgs | 12.5nC @ 4.5V | |
| Input Cap at Vds | 1800pF @ 15V | |
| Maximum Power Handling | 8W | |
| Attachment Mounting Style | Surface Mount | |

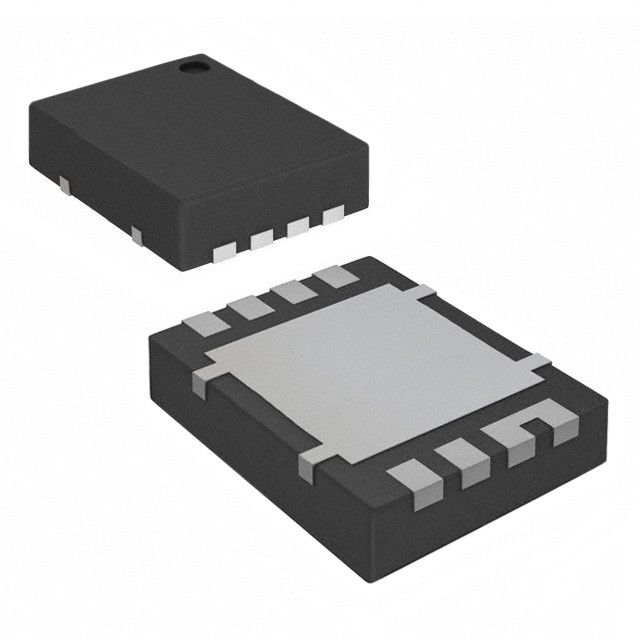

| Component Housing Style | 8-LDFN Exposed Pad |
Description
Measures resistance at forward current 2 N-Channel (Dual) for LED or diode evaluation. Supports a continuous drain current (Id) of 25A at 25°C. Supports Vdss drain-to-source voltage rated at 30V. Accommodates FET classification identified as 2 N-Channel (Dual). Upholds 12.5nC @ 4.5V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 1800pF @ 15V at Vds for optimal performance. Mounting style Surface Mount for structural integrity. Enclosure/case 8-LDFN Exposed Pad providing mechanical and thermal shielding. Peak power 8W for device protection. Peak Rds(on) at Id 12.5nC @ 4.5V for MOSFET efficiency. Peak Vgs(th) at Id 1.15V @ 250µA for MOSFET threshold level.
