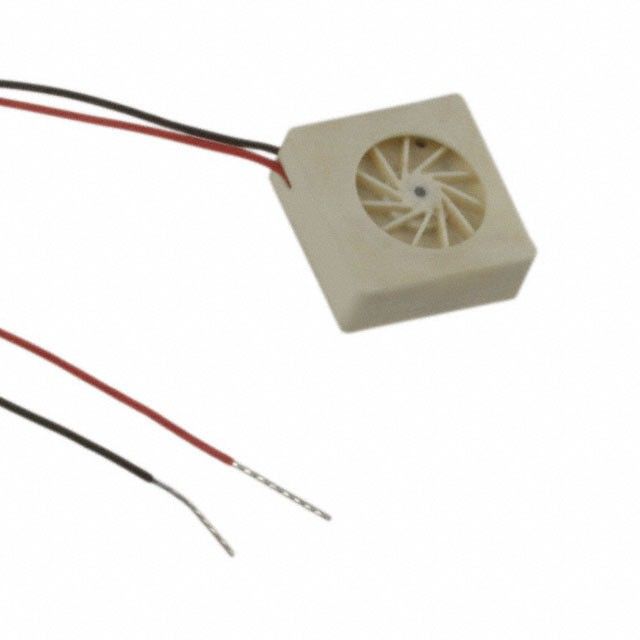

UB393-700
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Variant | Blower | |
| DC Fan Bearing Mode | ||
| Max Voltage Specification | 3VDC | |
| Ventilation Rate | 0.041 CFM (0.001m³/min) | |
| Airflow Static Pressure | 0.065 in H2O (16.2 Pa) | |
| Electrical Noise Level | 30.6 dB(A) | |
| Power Rating | 0.28W | |
| Revolutions Per Minute | 17400 RPM | |
| Ambient Temp Range | 14 ~ 158°F (-10 ~ 70°C) | |
| Circuit End Method | 2 Wire Leads | |
| Package Size Specs | Square - 9mm L x 9mm W x 3mm H |
Description
Provides airflow rated at 0.041 CFM (0.001m³/min) for effective cooling. Measures resistance at forward current Blower for LED or diode evaluation. Supports high-level output current indicated as 0.065 in H2O (16.2 Pa). Includes a DC fan type rated at Blower for optimal cooling efficiency. Sound level 30.6 dB(A) for acoustic or electronic efficiency. Operating temperature 14 ~ 158°F (-10 ~ 70°C) for thermal stability. Energy 0.28W for device power needs. RPM 17400 RPM for motors or mechanical systems. Dimensions Square - 9mm L x 9mm W x 3mm H for mechanical or electrical components. Dimension measurement Square - 9mm L x 9mm W x 3mm H for component details. Static pressure measurement 0.065 in H2O (16.2 Pa) for fluid or air systems. Termination method 2 Wire Leads for electrical or mechanical linkage. Peak Vce(on) at Vge 3VDC for transistor parameters. Voltage specification 3VDC for components.
