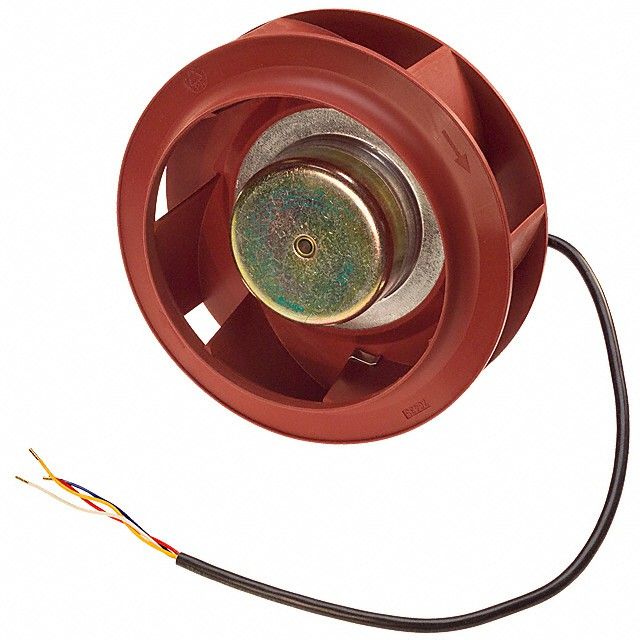

R1G175-AB41-02
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Variant | Motorized Impellers | |
| DC Fan Bearing Mode | Ball | |
| Max Voltage Specification | 48VDC | |
| Ventilation Rate | 330.0 CFM (9.34m³/min) | |
| Airflow Static Pressure | - | |
| Electrical Noise Level | 65 dB(A) | |
| Power Rating | 34.0W | |
| Revolutions Per Minute | 3100 RPM | |
| Ambient Temp Range | -13 ~ 140°F (-25 ~ 60°C) | |
| Circuit End Method | 4 Wire Leads | |
| Package Size Specs | Round - 175mm Dia x 69mm W |
Description
Provides airflow rated at 330.0 CFM (9.34m³/min) for effective cooling. Measures resistance at forward current Motorized Impellers for LED or diode evaluation. Designed with a DC fan bearing type indicated as Ball for optimal airflow. Includes a DC fan type rated at Motorized Impellers for optimal cooling efficiency. Sound level 65 dB(A) for acoustic or electronic efficiency. Operating temperature -13 ~ 140°F (-25 ~ 60°C) for thermal stability. Energy 34.0W for device power needs. RPM 3100 RPM for motors or mechanical systems. Dimensions Round - 175mm Dia x 69mm W for mechanical or electrical components. Dimension measurement Round - 175mm Dia x 69mm W for component details. Termination method 4 Wire Leads for electrical or mechanical linkage. Peak Vce(on) at Vge 48VDC for transistor parameters. Voltage specification 48VDC for components.
