Data Sheet
Attribute
Description

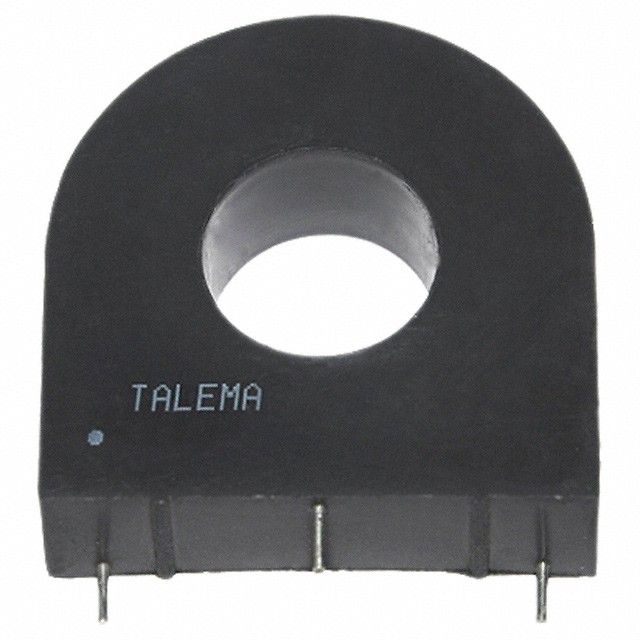

Manufacturer Part Number
AC1100
Manufacturer
Description
TRANSFORMER CURRENT 100 AMP
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 550.91 | ₹ 550.91 |
| 5 | ₹ 496.62 | ₹ 2,483.10 |
| 25 | ₹ 416.52 | ₹ 10,413.00 |
| 100 | ₹ 348.88 | ₹ 34,888.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Series | - | |
| Transformer Type | Frequency 50-60Hz | |
| Turns Ratio - Primary:Secondary | 1000 : 1 | |
| Inductance | - | |
| Current Rating | 100A | |
| DC Resistance (DCR) | 21.3 Ohm | |
| E.T. | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 44.50mm L x 14.30mm W | |
| Height - Seated (Max) | 44.50mm | |
| Termination Style | PC Pin |
