Data Sheet
Attribute
Description
Manufacturer Part Number

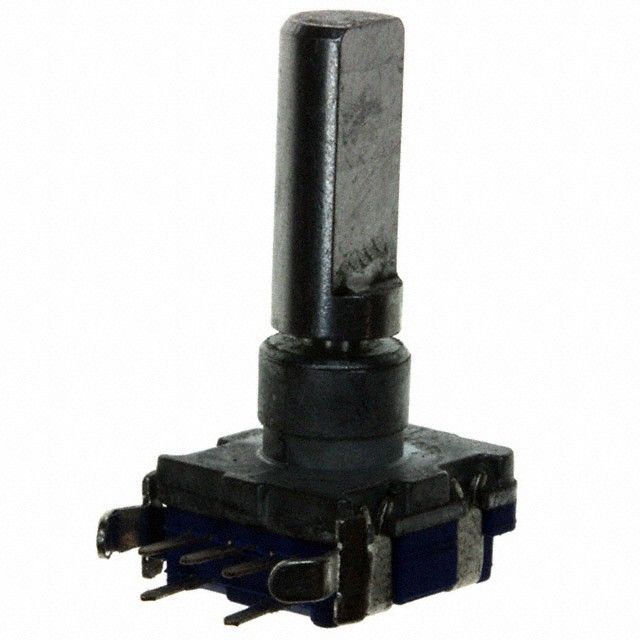

ACZ11BR4E-15KQA1-20C
Manufacturer
Description
Mechanical Encoder,
Quadrature (Incremental),
20PPR
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 20 | |
| Voltage - Supply | 5VDC | |
| Actuator Type | 6mm Dia Knurled End | |
| Detent | Yes | |
| Built in Switch | Yes | |
| Mounting Type | PCB, Through Hole | |
| Orientation | Right Angle | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 30K |
