Data Sheet
Attribute
Description
Manufacturer Part Number
SN74LV595APWRG3
Manufacturer
Description
Logic - Shift Registers,
8 Bit,
Shift Register
Manufacturer Lead Time
1 week
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 75.16 | ₹ 75.16 |
| 10 | ₹ 62.60 | ₹ 626.00 |
| 100 | ₹ 40.39 | ₹ 4,039.00 |
| 1000 | ₹ 32.31 | ₹ 32,310.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Logic Type | Shift Register | |
| Output Type | Tri-State | |
| Number of Elements | 1 | |
| Number of Bits per Element | 8 | |
| Function | Serial to Parallel, Serial | |
| Voltage - Supply | 2 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

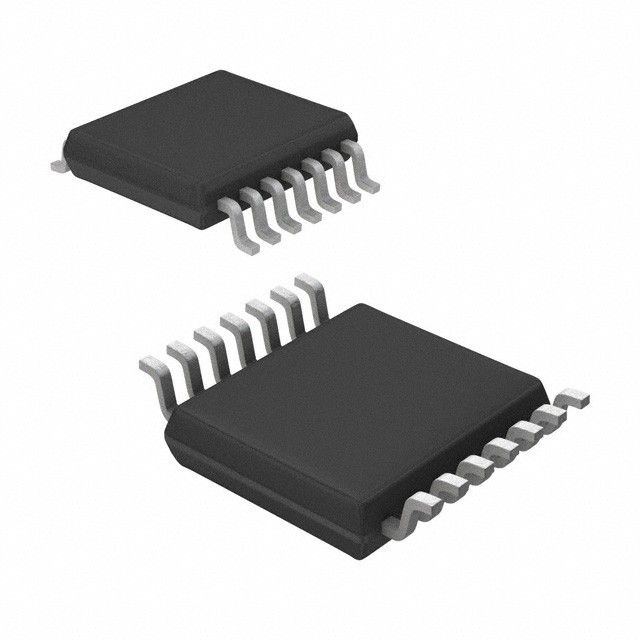

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
