Data Sheet
Attribute
Description
Manufacturer Part Number

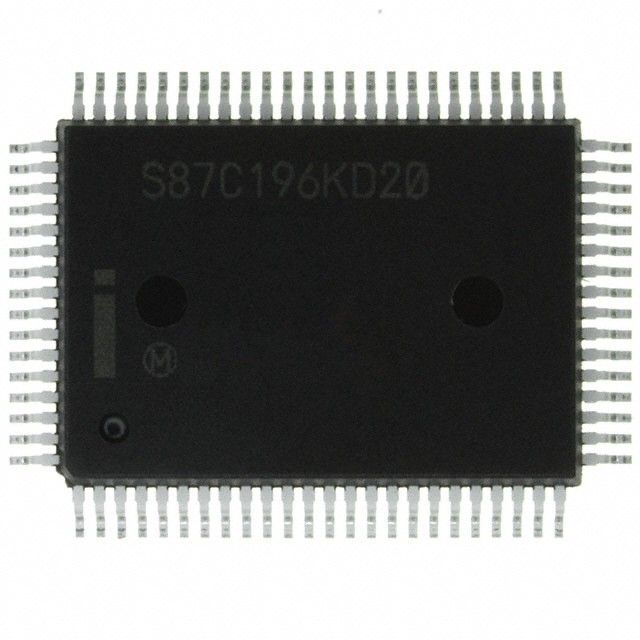

S87C196KD20
Manufacturer
Description
IC MCU 16BIT 32KB OTP 80MQFP
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Core Processor | MCS 96 | |
| Core Size | 16-Bit | |
| Speed | 20MHz | |
| Connectivity | SIO | |
| RAM Size | 48 | |
| Number of I/O | 32KB (32K x 8) | |
| Program Memory Size | OTP | |
| Program Memory Type | - | |
| EEPROM Size | 1K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 5.5 V | |
| Data Converters | A/D 8x10b | |
| Oscillator Type | External | |
| Operating Temperature | 0°C ~ 70°C | |
| Package / Case | 80-BQFP |
