Data Sheet
Attribute
Description

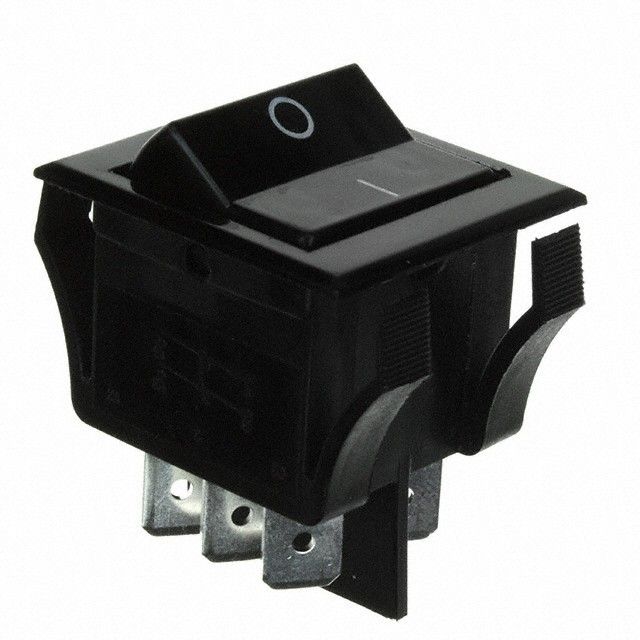

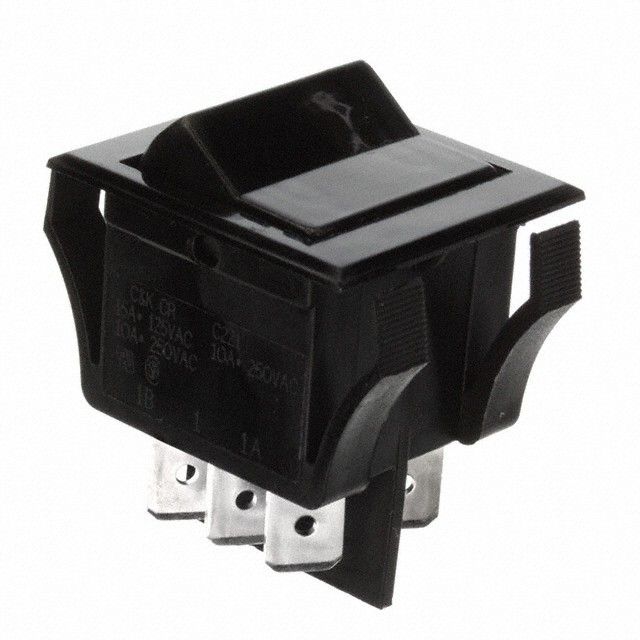

Manufacturer Part Number
C221J12S205PQF
Manufacturer
Description
SWITCH ROCKER DPDT 15A 125V
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Circuit | DPDT | |
| Switch Function | On-On | |
| Current Rating | 15A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Style | Concave (Standard V) | |
| Color - Actuator/Cap | Black | |
| Actuator Marking | O - | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Panel Cutout Dimensions | Rectangular - 28.58mm x 25.40mm |
