Attribute
Description

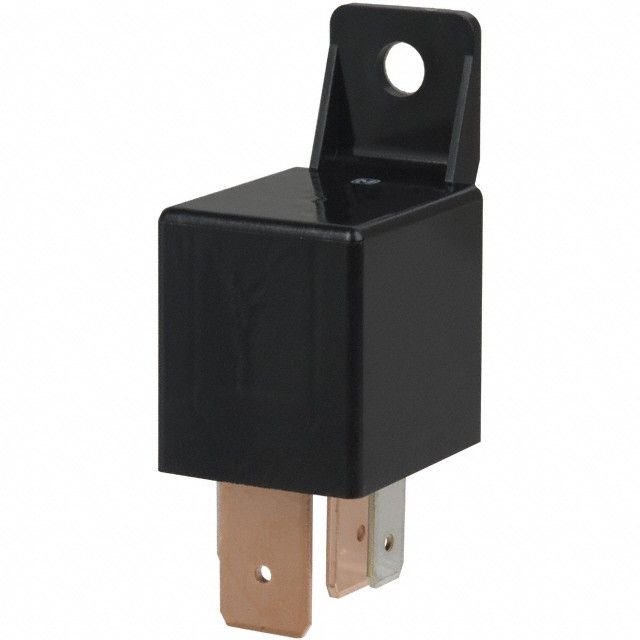

Manufacturer Part Number
CB1-M-24V
Manufacturer
Description
RELAY,
AUTOMOTIVE,
SPDT,
24VDC,...
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 550.02 | ₹ 550.02 |
| 10 | ₹ 527.77 | ₹ 5,277.70 |
| 25 | ₹ 504.63 | ₹ 12,615.75 |
| 50 | ₹ 448.56 | ₹ 22,428.00 |
| 100 | ₹ 381.81 | ₹ 38,181.00 |
| 500 | ₹ 336.42 | ₹ 1,68,210.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Relay Type | Automotive | |
| Coil Type | Non Latching | |
| Coil Current | 75mA | |
| Coil Voltage | 24VDC | |
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 20A | |
| Switching Voltage | 28VDC - Nom | |
| Turn On Voltage (Max) | 14 VDC | |
| Turn Off Voltage (Min) | 2.4 VDC | |
| Operate Time | 15ms | |
| Release Time | 15ms | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
