Stock: 2156
Distributor: 108
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 62.30 | ₹ 62.30 |
| 10 | ₹ 47.35 | ₹ 473.50 |
| 100 | ₹ 42.01 | ₹ 4,201.00 |
| 500 | ₹ 40.14 | ₹ 20,070.00 |
| 1000 | ₹ 40.05 | ₹ 40,050.00 |
| 2000 | ₹ 34.44 | ₹ 68,880.00 |
| 10000 | ₹ 33.11 | ₹ 3,31,100.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ORD | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |

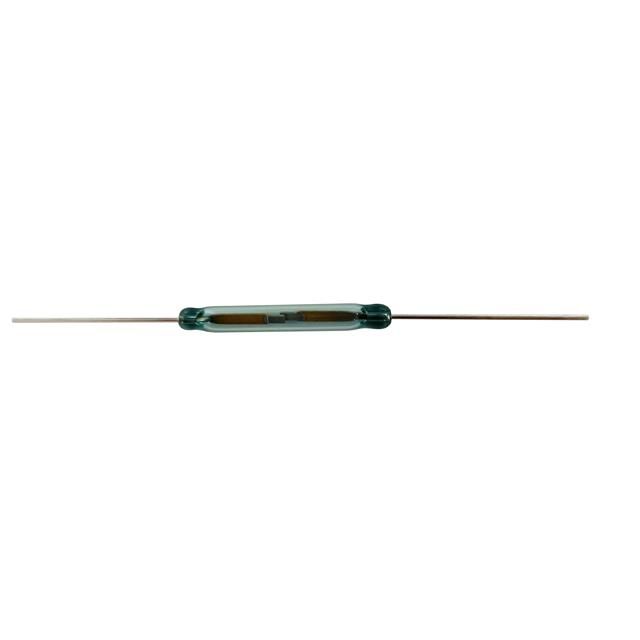

| Device Type Classification | Glass Body Reed | |
| Electrical Pathway | SPST-NO | |
| Functional Operating Range | 10 ~ 15AT | |
| Deactivation Range | - | |
| Switch Transition Amps | 500mA (DC) | |
| AC Switching Voltage | - | |
| DC Switching Voltage | 200 V | |
| Nominal Power Rating | 10W | |
| Activation Response Time | 0.4 ms | |
| Reset Response Duration | 0.05 ms | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | Axial | |
| Full Overall Length | 1.744" (44.30mm) | |
| Main Body Dimensions | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | |
| PCB Clearance Height | - | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Storage Capacity Electrical | 0.3 pF | |
| Continuous Current Rating | 1A (DC) |
Description
Offers a capacitance level rated at 0.3 pF to ensure circuit stability. Set up to circuit type characterized as SPST-NO. Supports a current-carrying capacity rated at 1A (DC). Functions with switching current identified as 500mA (DC). Total length 1.744" (44.30mm) for comprehensive dimension reference. Mounting style Through Hole for structural integrity. Functionality range 10 ~ 15AT for device operation. Response duration 0.4 ms for timing and activation. Operating temperature -40°C ~ 125°C for thermal stability. Enclosure Bulk for component protection or transport. Energy 10W for device power needs. Specified power 10W for compliance with standards. Product condition Active for availability and lifecycle. Time taken 0.05 ms for release and responsiveness. Product or component classification series ORD. Dimensions of the body 0.087" Dia x 0.551" L (2.20mm x 14.00mm) for device compatibility. Termination type Axial for connector or device. Category Glass Body Reed for classification or specification. DC voltage for switching 200 V in circuits.
