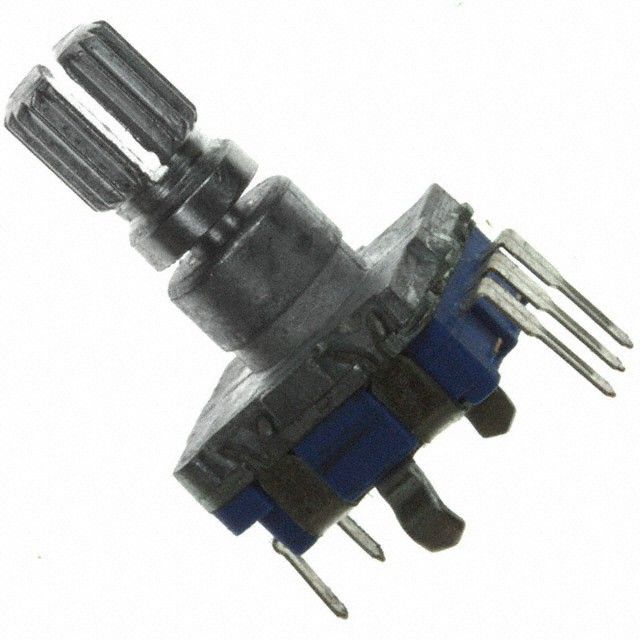

ACZ09BR1E-20KQD1-20C
Data Sheet
Attribute
Description
Manufacturer Part Number
ACZ09BR1E-20KQD1-20C
Manufacturer
Description
Mechanical Encoder,
Quadrature (Incremental),
20PPR
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Exit Signal Category | Quadrature (Incremental) | |
| Encoder Pulse Count per Turn | 20 | |
| Single/Dual (±) | 5VDC | |
| Activator Mechanism Type | 6mm Dia Knurled End | |
| Notch Position Hold | Yes | |
| Integrated Toggle Control | Yes | |
| Attachment Mounting Style | Panel, PCB Through Hole | |
| Installation Orientation | Vertical | |
| Lead Termination Type | PC Pin | |
| Minimum Rotation Cycles | 30K |
Description
Fitted with a 6mm Dia Knurled End actuator type to execute the intended function. Incorporates a built-in switch classified as Yes. Features a detent mechanism rated at Yes. Mounting style Panel, PCB Through Hole for structural integrity. Positioning Vertical for correct installation or signal alignment. Output type Quadrature (Incremental) for system compatibility. Pulses per rotation 20 for rotary encoders or motors. Minimum rotational lifespan 30K for longevity. Termination type PC Pin for connector or device.
