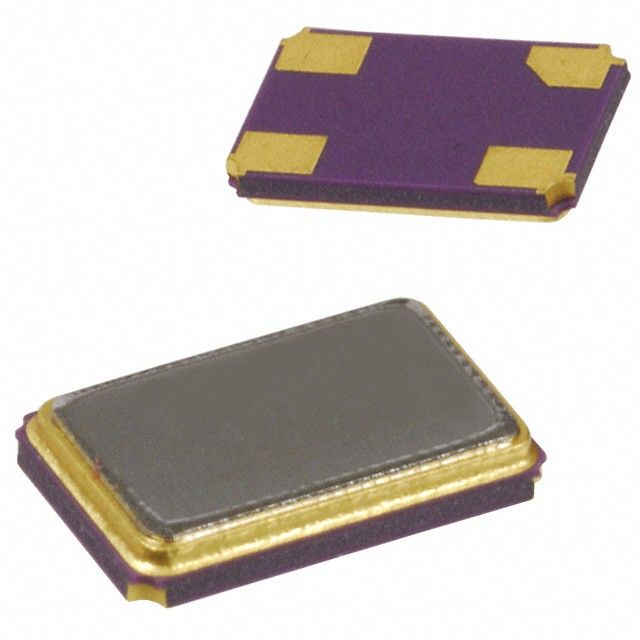

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Oscillation Rate Hz | 12MHz | |
| Oscillator Drift Tolerance | ±50ppm | |
| Hz Deviation Limit | ±50ppm | |
| Output Load Cap Value | 20pF | |
| ESR Value | 120 Ohm | |
| Op Temp Range | -10°C ~ 70°C | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 4-SMD, No Lead (DFN, LCC) | |
| Package Size Specs | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Vertical Dimension | 0.043" (1.10mm) |
Description
Measures resistance at forward current ±50ppm for LED or diode evaluation. Presents the measured equivalent series resistance at 120 Ohm. Operates at a frequency of 12MHz. Ensures ±50ppm frequency stability across different environmental conditions. Upholds ±50ppm frequency tolerance for precise electronic functionality. Records a height of 0.043" (1.10mm) for precise dimensional accuracy. Load capacitance 20pF to ensure stable electrical operation. Mounting style Surface Mount for structural integrity. Operating temperature range -10°C ~ 70°C for environmental resilience. Enclosure/case 4-SMD, No Lead (DFN, LCC) providing mechanical and thermal shielding. Dimensions 0.126" L x 0.098" W (3.20mm x 2.50mm) for mechanical or electrical components. Dimension measurement 0.126" L x 0.098" W (3.20mm x 2.50mm) for component details. Peak Vce(on) at Vge 0.043" (1.10mm) for transistor parameters.
