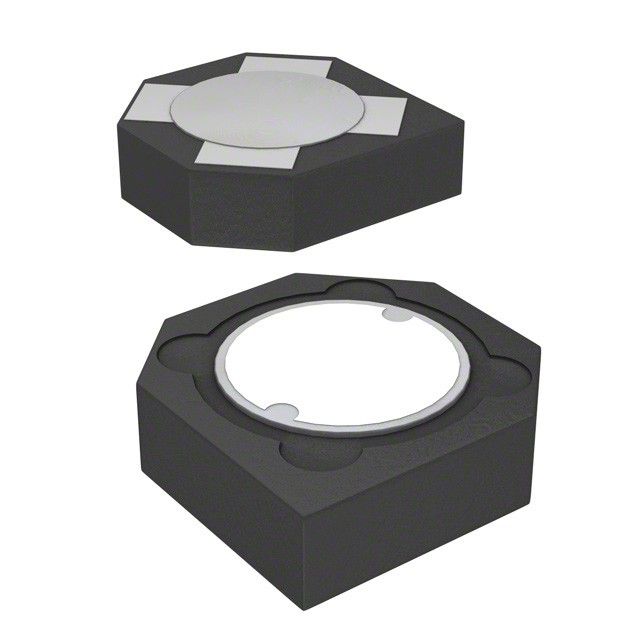

744778928
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 820µH | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Current | 210mA | |
| Saturation Current | 200mA | |
| Electromagnetic Interference Protection | Shielded | |
| Direct Current Resistance | 6.54 Ohm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | 2.5MHz | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Test Frequency | 1kHz | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Non Standard | |
| Package Size Specs | 0.287" L x 0.287" W (7.30mm x 7.30mm) | |
| Maximum Mounted Height | 0.138" (3.50mm) |
Description
Measures resistance at forward current Shielded for LED or diode evaluation. Accommodates saturation current specified at 200mA. Provides a current rating of 210mA. Offers DC resistance recorded at 6.54 Ohm Max for precise circuit functionality. Includes a 2.5MHz self-resonant frequency that guarantees optimal component efficiency. Accommodates 1kHz frequency during testing to ensure precise device validation. Maximum seated height of 0.138" (3.50mm) for components mounted on the board. Offers 820µH inductance for tuning and filtering circuits. Material Ferrite for efficient electromagnetic performance. Mounting style Surface Mount for structural integrity. Operating temperature -40°C ~ 125°C for thermal stability. Enclosure/case Non Standard providing mechanical and thermal shielding. Shielding Shielded for EMI/RFI shielding. Dimensions 0.287" L x 0.287" W (7.30mm x 7.30mm) for mechanical or electrical components. Dimension measurement 0.287" L x 0.287" W (7.30mm x 7.30mm) for component details. Tolerance ±20% for precision in manufacturing. Peak Vce(on) at Vge Shielded for transistor parameters.
