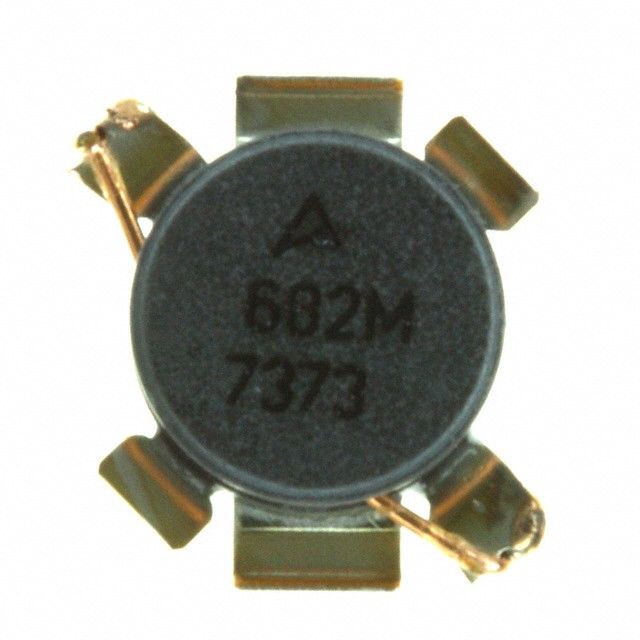

B82462A4102M
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 1µH | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Current | 3A | |
| Saturation Current | 5.8A | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 24 mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | 130MHz | |
| Ambient Temp Range | - | |
| Test Frequency | 100kHz | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Non Standard | |
| Package Size Specs | 0.236" L x 0.236" W (6.00mm x 6.00mm) | |
| Maximum Mounted Height | 0.118" (3.00mm) |
Description
Measures resistance at forward current Unshielded for LED or diode evaluation. Accommodates saturation current specified at 5.8A. Provides a current rating of 3A. Offers DC resistance recorded at 24 mOhm Max for precise circuit functionality. Includes a 130MHz self-resonant frequency that guarantees optimal component efficiency. Accommodates 100kHz frequency during testing to ensure precise device validation. Maximum seated height of 0.118" (3.00mm) for components mounted on the board. Offers 1µH inductance for tuning and filtering circuits. Material Ferrite for efficient electromagnetic performance. Mounting style Surface Mount for structural integrity. Enclosure/case Non Standard providing mechanical and thermal shielding. Shielding Unshielded for EMI/RFI shielding. Dimensions 0.236" L x 0.236" W (6.00mm x 6.00mm) for mechanical or electrical components. Dimension measurement 0.236" L x 0.236" W (6.00mm x 6.00mm) for component details. Tolerance ±20% for precision in manufacturing. Peak Vce(on) at Vge Unshielded for transistor parameters.
