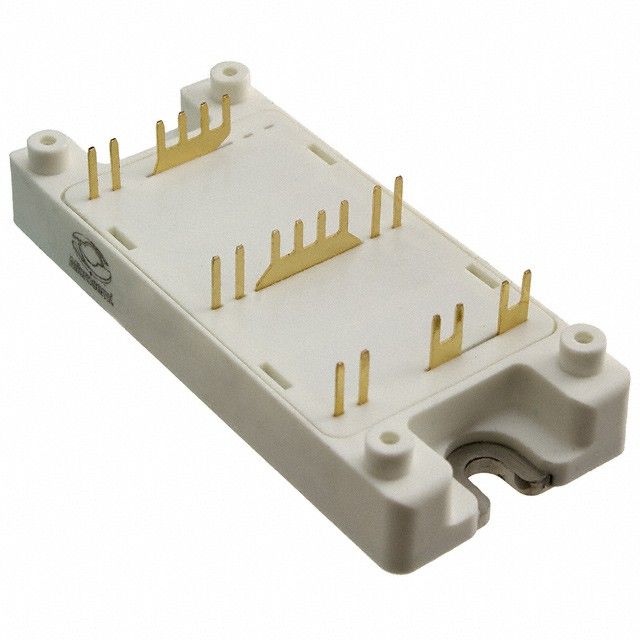

APTGT200A602G
Data Sheet
Attribute
Description
Manufacturer Part Number
APTGT200A602G
Manufacturer
Description
POWER MOD IGBT3 PHASE LEG SP2
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| IGBT Class | Trench and Field Stop | |
| Max Collector-Emitter Breakdown | 600V | |
| Maximum Collector Amps | 290A | |
| Maximum Power Handling | 625W | |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 200A | |
| Entry Signal Category | 12.3nF @ 25V | |
| Attachment Mounting Style | Chassis Mount | |
| Component Housing Style | SP2 |
Description
Provides a maximum collector current (Ic) of 290A. Features a DC current gain hFE at Ic evaluated at 1.9V @ 15V, 200A. Designed as Trench and Field Stop IGBT type for effective power switching. Set up with 12.3nF @ 25V input type for versatile applications. Mounting style Chassis Mount for structural integrity. Enclosure/case SP2 providing mechanical and thermal shielding. Peak power 625W for device protection. Peak Vce(on) at Vge 1.9V @ 15V, 200A for transistor parameters. Highest collector-emitter breakdown voltage 600V.
