Data Sheet
Attribute
Description
Manufacturer Part Number
US1J-13-F
Manufacturer
Description

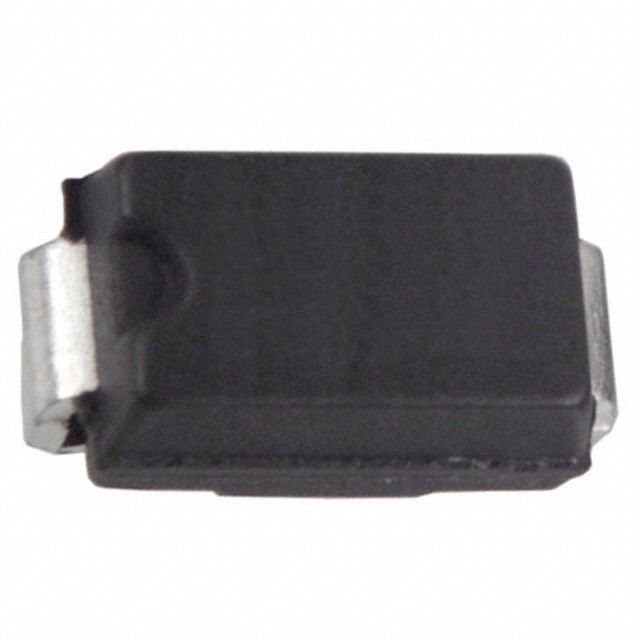

US1J Series 600 V 1 A Surface Mount Ultra-Fast Rectifier - D...
Manufacturer Lead Time
1 week
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 12
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 700 | ₹ 14.07 | ₹ 9,849.00 |
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 30.82 | ₹ 30.82 |
| 10 | ₹ 22.48 | ₹ 224.80 |
| 100 | ₹ 14.14 | ₹ 1,414.00 |
| 250 | ₹ 10.45 | ₹ 2,612.50 |
| 500 | ₹ 8.52 | ₹ 4,260.00 |
| 1000 | ₹ 6.58 | ₹ 6,580.00 |
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 40.39 | ₹ 40.39 |
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5 | ₹ 10,072.42 | ₹ 50,362.10 |
| 25 | ₹ 6,043.27 | ₹ 1,51,081.75 |
| 100 | ₹ 5,437.45 | ₹ 5,43,745.00 |
| 500 | ₹ 4,810.56 | ₹ 24,05,280.00 |
| 5000 | ₹ 4,317.13 | ₹ 2,15,85,650.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Type | Standard | |
| Reverse DC Voltage(Vr) | 600V | |
| Current - Average Rectified (Io) | 1A | |
| Forward Voltage (Vf) | 1.7V @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 75ns | |
| Reverse Leakage Current @ Vr | 5µA @ 600V | |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz | |
| Thermal Resistance | 30°C/W Jl | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-214AC, SMA |
