Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Signal Booster Category | General Purpose | |
| Electrical Circuit Count | 1 | |
| Exit Signal Category | Rail-to-Rail | |
| Voltage Slew Speed V/us | 1 V/?s | |
| Amplifier Bandwidth Gain | 1MHz | |
| 3dB Bandwidth | - | |
| Bias Input Amperage | 1nA | |
| Input Offset Voltage | 1.7mV | |
| Power Supply Amperage | 200?A | |
| Per-Channel Output Current | 160mA | |
| Single or Dual Supply Option | 1.8 V ~ 5 V, ?0.9 V ~ 2.5 V | |
| Ambient Temp Range | -40?C ~ 85?C | |
| Attachment Mounting Style | Surface Mount | |

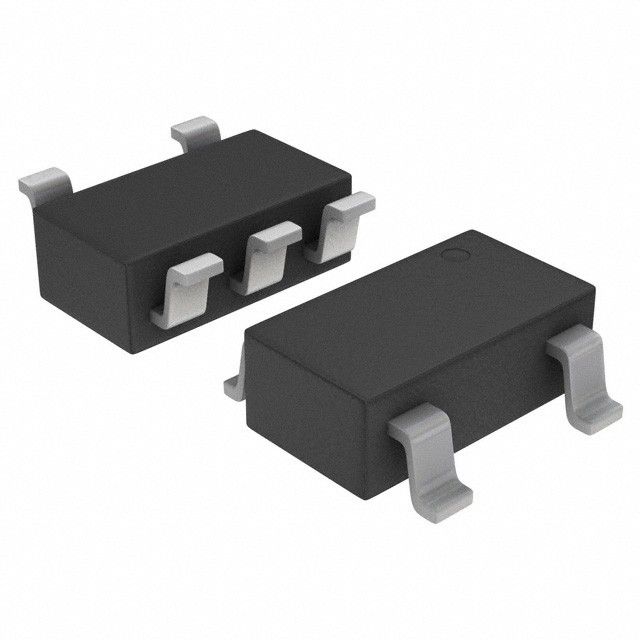

| Component Housing Style | 6-TSSOP (5 Lead), SC-88A, SOT-353 |
Description
Incorporates a General Purpose amplifier design for improved signal transmission. Measures resistance at forward current 1MHz for LED or diode evaluation. Includes input bias current rated at 1nA. Presents per-channel output current rated at 160mA. Utilizes supply current defined as 200?A. Tuned with 1MHz gain bandwidth product for effective high-frequency performance. Mounting style Surface Mount for structural integrity. Total circuits 1 for electrical or electronic designs. Operating temperature -40?C ~ 85?C for thermal stability. Output type Rail-to-Rail for system compatibility. Enclosure/case 6-TSSOP (5 Lead), SC-88A, SOT-353 providing mechanical and thermal shielding. Transition rate 1 V/?s for signal change speed. Peak Vce(on) at Vge 1 for transistor parameters. Input offset voltage 1.7mV for analog systems. Single/dual voltage supply ± 1.8 V ~ 5 V, ?0.9 V ~ 2.5 V for various devices.
