Stock: 1514
Distributor: 141
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 682.63 | ₹ 682.63 |
| 10 | ₹ 456.04 | ₹ 4,560.40 |
| 25 | ₹ 396.90 | ₹ 9,922.50 |
| 100 | ₹ 330.07 | ₹ 33,007.00 |
| 250 | ₹ 297.26 | ₹ 74,315.00 |
| 500 | ₹ 284.80 | ₹ 1,42,400.00 |
| 1000 | ₹ 284.80 | ₹ 2,84,800.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Signal Booster Category | General Purpose | |
| Electrical Circuit Count | 4 | |
| Exit Signal Category | Rail-to-Rail | |
| Voltage Slew Speed V/us | 63 V/?s | |
| Amplifier Bandwidth Gain | - | |
| 3dB Bandwidth | 125MHz | |
| Bias Input Amperage | 1.7?A | |
| Input Offset Voltage | 2mV | |
| Power Supply Amperage | 1.4mA | |
| Per-Channel Output Current | 170mA | |
| Single or Dual Supply Option | 2.7 V ~ 12 V, ?1.35 V ~ 6 V | |
| Ambient Temp Range | -40?C ~ 125?C | |
| Attachment Mounting Style | Surface Mount | |

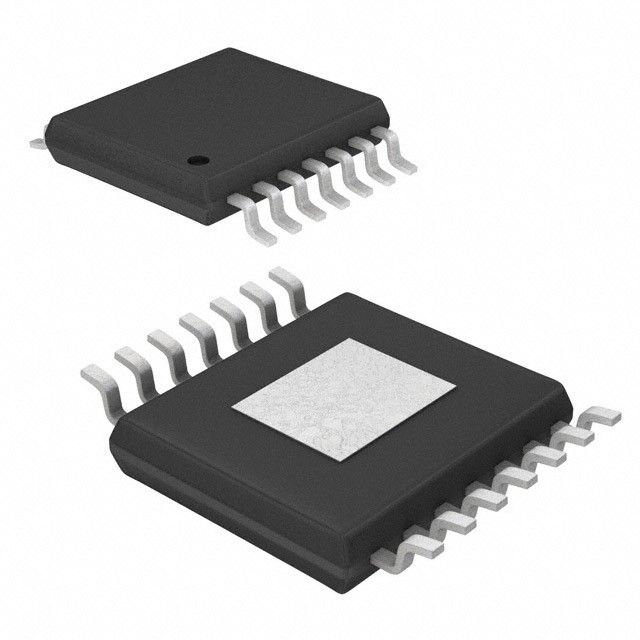

| Component Housing Style | 14-TSSOP (0.173", 4.40mm Width) |
Description
Provides a -3dB bandwidth of 125MHz to ensure consistent signal quality. Incorporates a General Purpose amplifier design for improved signal transmission. Includes input bias current rated at 1.7?A. Presents per-channel output current rated at 170mA. Utilizes supply current defined as 1.4mA. Mounting style Surface Mount for structural integrity. Total circuits 4 for electrical or electronic designs. Operating temperature -40?C ~ 125?C for thermal stability. Output type Rail-to-Rail for system compatibility. Enclosure/case 14-TSSOP (0.173", 4.40mm Width) providing mechanical and thermal shielding. Transition rate 63 V/?s for signal change speed. Peak Vce(on) at Vge 4 for transistor parameters. Input offset voltage 2mV for analog systems. Single/dual voltage supply ± 2.7 V ~ 12 V, ?1.35 V ~ 6 V for various devices.
