60601
Data Sheet
Attribute
Description
Manufacturer Part Number
60601
Manufacturer
Description

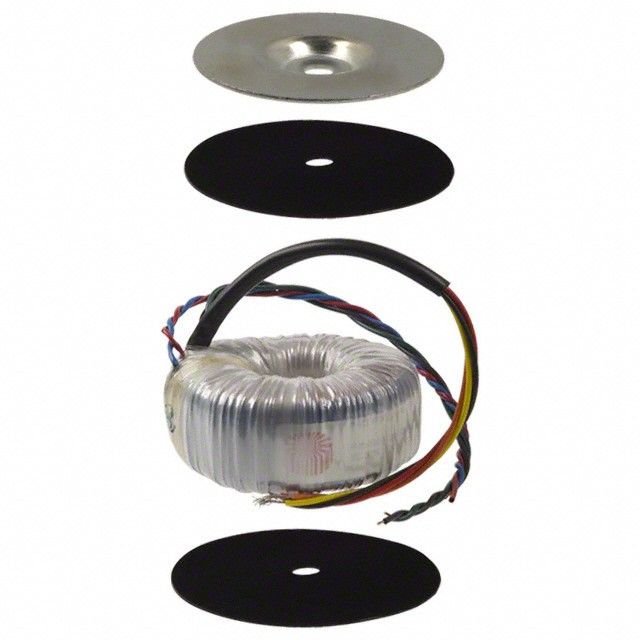

XFRMR TOROIDAL 600VA CHAS MOUNT
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Input Primary Voltage | 117V | |
| Loaded Secondary Volts | Parallel 15V, Series 30V | |
| Peak Output Current | Parallel 40A, Series 20A | |
| Input Coil Turns | Single | |
| Output Coil Turns | Dual | |
| Midpoint Connection | No | |
| Maximum Power Handling | 600 VA | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Wire Leads | |
| Package Size Specs | - | |
| Maximum Mounted Height | 58.00mm | |
| Isolation Barrier Voltage | - |
Description
Features a center tap described as No for adaptable configuration. Delivers peak output current defined as Parallel 40A, Series 20A. Maximum seated height of 58.00mm for components mounted on the board. Mounting style Chassis Mount for structural integrity. Peak power 600 VA for device protection. Main winding(s) Single for transformer or coil configuration. Additional winding(s) Dual for transformers or coils. Termination type Wire Leads for connector or device. Primary voltage input 117V for transformers or circuits. Secondary voltage under full load Parallel 15V, Series 30V.
