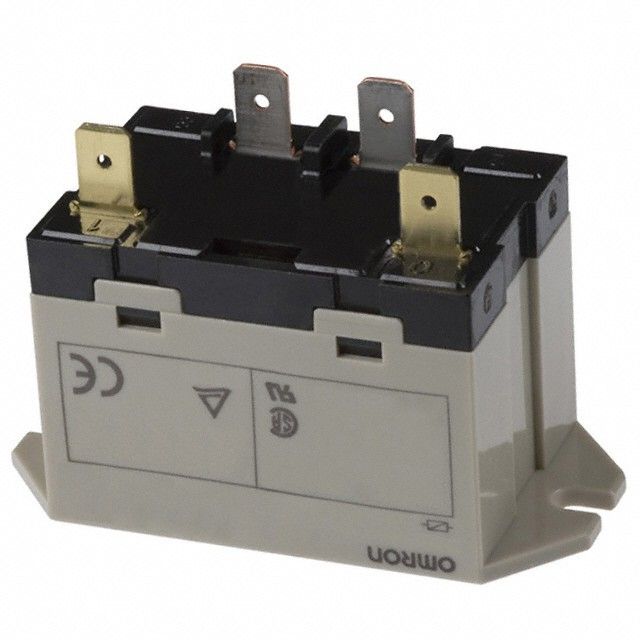

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electromechanical Relay Style | General Purpose | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 19.2mA | |
| Inductor Operating Volts | 208VAC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 30A | |
| Switch Rated Volts | 277VAC, 28VDC - Max | |
| Max Turn-On V | 166.4 VAC | |
| Min Turn-Off V | 20.8 VAC | |
| Activation Response Time | 15ms | |
| Reset Response Duration | 15ms | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Quick Connect - 0.250" (6.3mm) |
Description
Measures resistance at forward current 20.8 VAC for LED or diode evaluation. Accommodates coil current recorded at 19.2mA. Built with a coil type designated as Non Latching for effective electrical performance. Functions with a coil voltage of 208VAC for dependable operation. Employs contact form classified as DPDT (2 Form C). Accommodates contact current rating of 30A. Mounting style Chassis Mount for structural integrity. Response duration 15ms for timing and activation. Type of relay General Purpose for switching electrical circuits. Time taken 15ms for release and responsiveness. Switch voltage rating 277VAC, 28VDC - Max for electrical specifications. Termination type Quick Connect - 0.250" (6.3mm) for connector or device. Lowest turn-off voltage 20.8 VAC for electronic parts. Highest turn-on voltage 166.4 VAC for component specifications. Peak Vce(on) at Vge General Purpose for transistor parameters.
