Data Sheet
Attribute
Description
Manufacturer Part Number

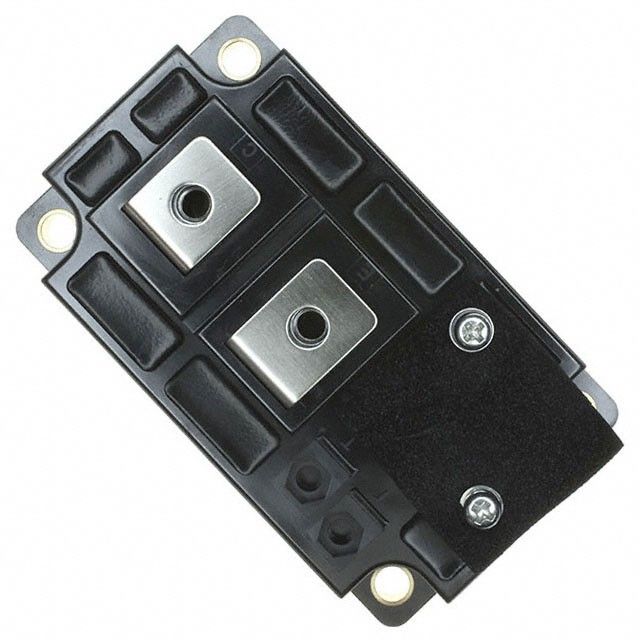

CM600HA-24A
Manufacturer
Description
IGBTs - Arrays,
Modules,
1200V,
600A,
3670W
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 16,297.68 | ₹ 16,297.68 |
| 10 | ₹ 15,510.92 | ₹ 1,55,109.20 |
| 100 | ₹ 14,612.02 | ₹ 14,61,202.00 |
| 250 | ₹ 14,387.74 | ₹ 35,96,935.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 600A | |
| Power - Max | 3670W | |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 600A | |
| Input Type | 105nF @ 10V | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module |
