Data Sheet
Attribute
Description

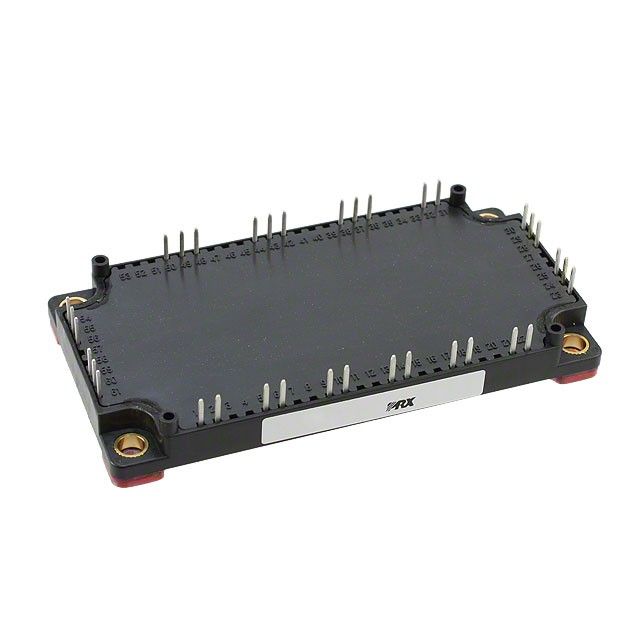

Manufacturer Part Number
CM150TX-24S
Manufacturer
Description
IGBTs - Arrays,
Modules,
1200V,
150A,
1150W
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 20,137.14 | ₹ 20,137.14 |
| 10 | ₹ 19,165.26 | ₹ 1,91,652.60 |
| 100 | ₹ 18,054.54 | ₹ 18,05,454.00 |
| 250 | ₹ 17,776.86 | ₹ 44,44,215.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 150A | |
| Power - Max | 1150W | |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 150A | |
| Input Type | 15nF @ 10V | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module |
