Data Sheet
Attribute
Description

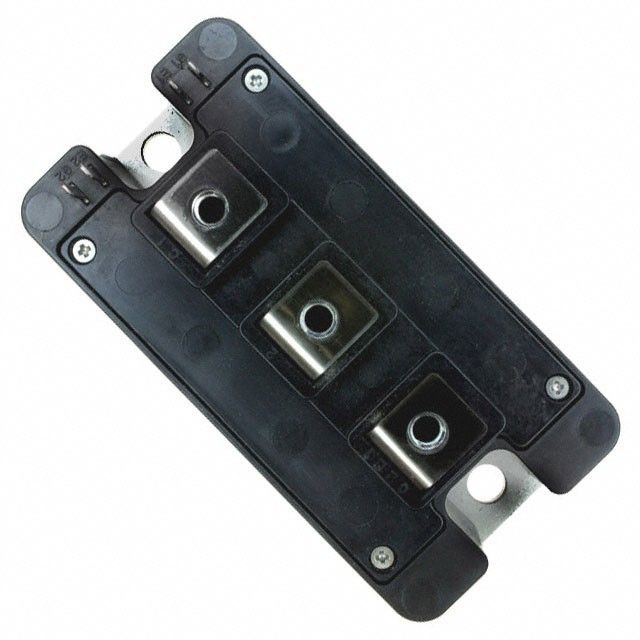

Manufacturer Part Number
CM100DY-24A
Manufacturer
Description
IGBTs - Arrays,
Modules,
1200V,
100A,
672W
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 8,047.38 | ₹ 8,047.38 |
| 10 | ₹ 7,544.53 | ₹ 75,445.30 |
| 100 | ₹ 6,789.81 | ₹ 6,78,981.00 |
| 250 | ₹ 6,538.83 | ₹ 16,34,707.50 |
| 500 | ₹ 6,438.26 | ₹ 32,19,130.00 |
| 1000 | ₹ 6,286.96 | ₹ 62,86,960.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 100A | |
| Power - Max | 672W | |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 100A | |
| Input Type | 17.5nF @ 10V | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module |
