Data Sheet
Attribute
Description
Manufacturer Part Number
APT10SCD120B
Manufacturer
Description
Diodes Rectifiers - Single,
1200V (1.2kV),
36A (DC)
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Type | Silicon Carbide Schottky | |
| Reverse DC Voltage(Vr) | 1200V (1.2kV) | |
| Current - Average Rectified (Io) | 36A (DC) | |
| Forward Voltage (Vf) | 1.8V @ 10A | |
| Speed | No Recovery Time > 500mA (Io) | |
| Reverse Recovery Time (trr) | 0ns | |
| Reverse Leakage Current @ Vr | 200µA @ 1200V | |
| Capacitance @ Vr, F | 600pF @ 0V, 1MHz | |
| Thermal Resistance | 1°C/W Jc | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Mounting Type | Through Hole | |

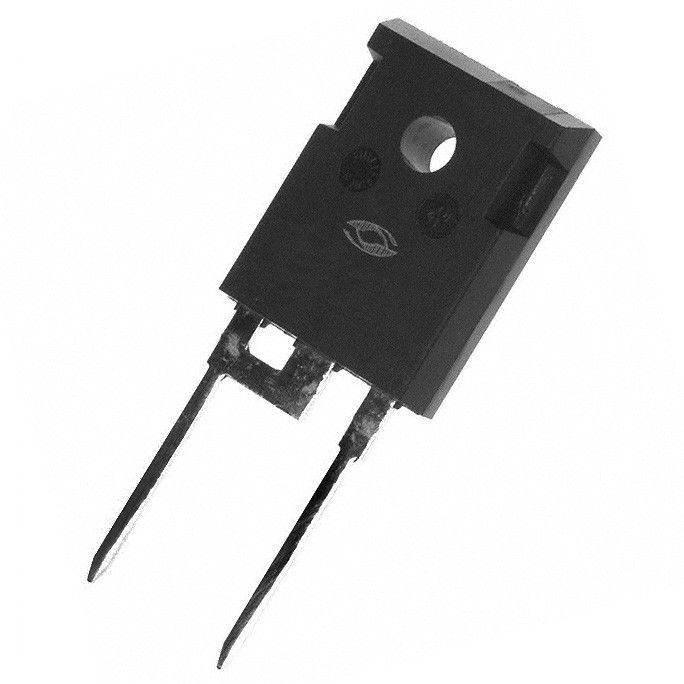

| Package / Case | TO-247-3 |
