Data Sheet
Attribute
Description
Manufacturer Part Number
1N6098
Manufacturer
Description
Diodes Rectifiers - Single,
40V,
50A
Manufacturer Lead Time
10 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,019.05 | ₹ 1,019.05 |
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,299.40 | ₹ 1,299.40 |
| 25 | ₹ 1,267.36 | ₹ 31,684.00 |
| 100 | ₹ 1,137.42 | ₹ 1,13,742.00 |
| 250 | ₹ 1,007.48 | ₹ 2,51,870.00 |
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,429.34 | ₹ 1,429.34 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Type | Schottky | |
| Reverse DC Voltage(Vr) | 40V | |
| Current - Average Rectified (Io) | 50A | |
| Forward Voltage (Vf) | 700mV @ 50A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current @ Vr | 5mA @ 30V | |
| Capacitance @ Vr, F | - | |
| Thermal Resistance | 1°C/W Jc | |
| Operating Temperature - Junction | -65°C ~ 150°C | |

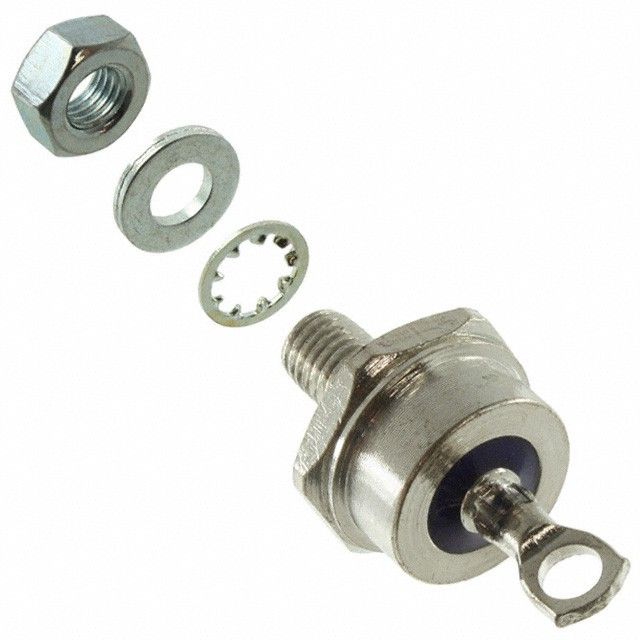

| Mounting Type | Chassis, Stud Mount | |
| Package / Case | DO-203AB, DO-5, Stud |
