Data Sheet
Attribute
Description

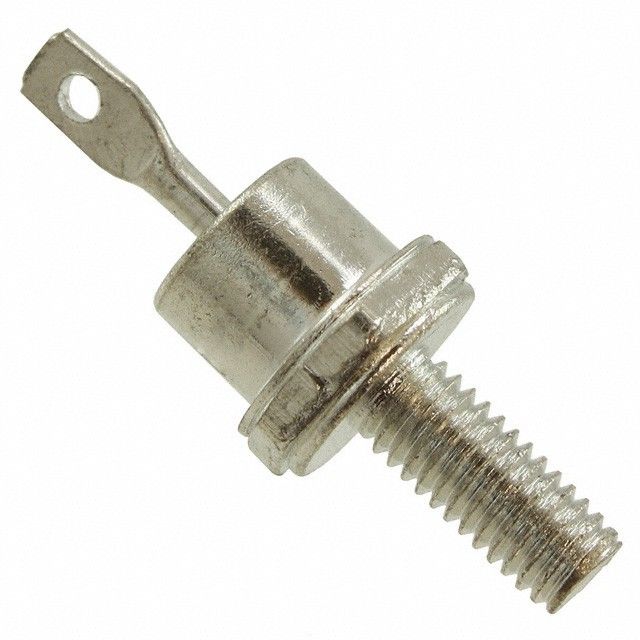

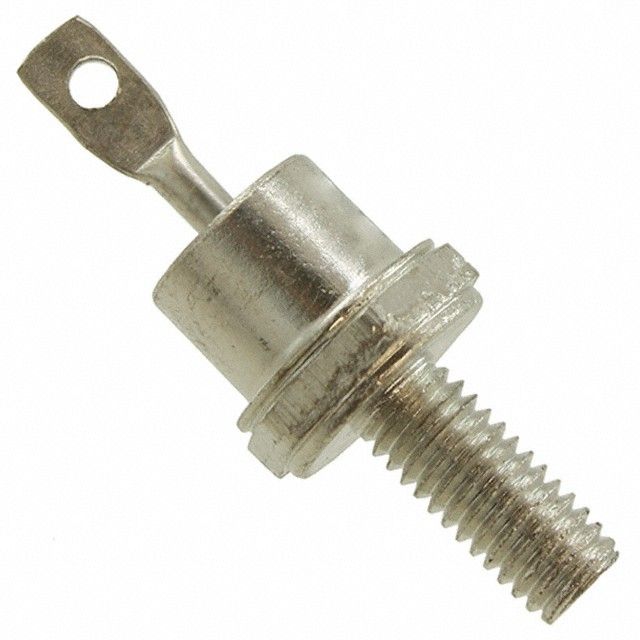

Manufacturer Part Number
1N3889
Manufacturer
Description
Diodes Rectifiers - Single,
50V,
12A
Manufacturer Lead Time
10 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 285.69 | ₹ 285.69 |
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 482.38 | ₹ 482.38 |
| 25 | ₹ 469.03 | ₹ 11,725.75 |
| 100 | ₹ 421.86 | ₹ 42,186.00 |
| 250 | ₹ 376.47 | ₹ 94,117.50 |
| 500 | ₹ 326.63 | ₹ 1,63,315.00 |
| 1000 | ₹ 315.95 | ₹ 3,15,950.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Type | Standard | |
| Reverse DC Voltage(Vr) | 50V | |
| Current - Average Rectified (Io) | 12A | |
| Forward Voltage (Vf) | 1.4V @ 12A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 200ns | |
| Reverse Leakage Current @ Vr | 25µA @ 50V | |
| Capacitance @ Vr, F | - | |
| Thermal Resistance | 2.5°C/W Jc | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Mounting Type | Chassis, Stud Mount | |
| Package / Case | DO-203AA, DO-4, Stud |
