Attribute
Description

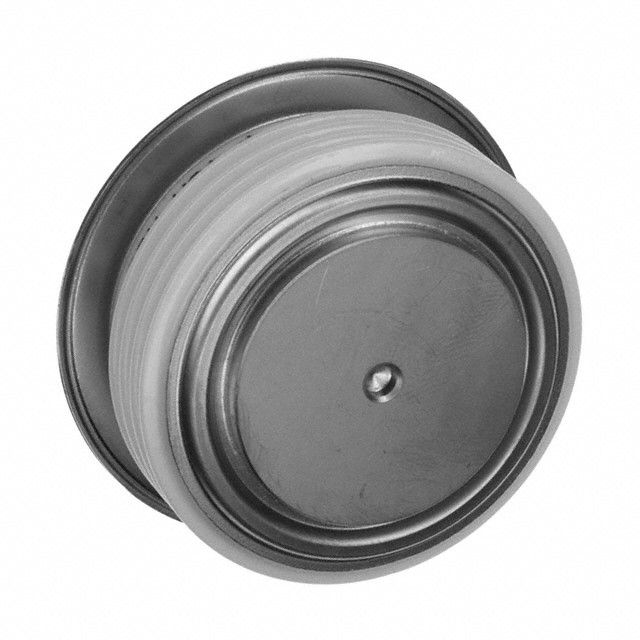

Manufacturer Part Number
R9G01222XX
Manufacturer
Description
RECTIFIER 1200V 2200A
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 17,682.52 | ₹ 17,682.52 |
| 10 | ₹ 16,829.01 | ₹ 1,68,290.10 |
| 100 | ₹ 15,853.57 | ₹ 15,85,357.00 |
| 250 | ₹ 15,609.71 | ₹ 39,02,427.50 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Configuration | Single | |
| Diode Type | Standard | |
| Reverse DC Voltage(Vr) (Max) | 1200V (1.2kV) | |
| Current - Average Rectified (Io) | 2200A | |
| Forward Voltage (Vf) | 1.1V @ 1500A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 15µs | |
| Reverse Leakage Current @ Vr | 150mA @ 1200V | |
| Mounting Type | Chassis Mount | |
| Package / Case | DO-200AB, B-PUK |
