Data Sheet
Attribute
Description

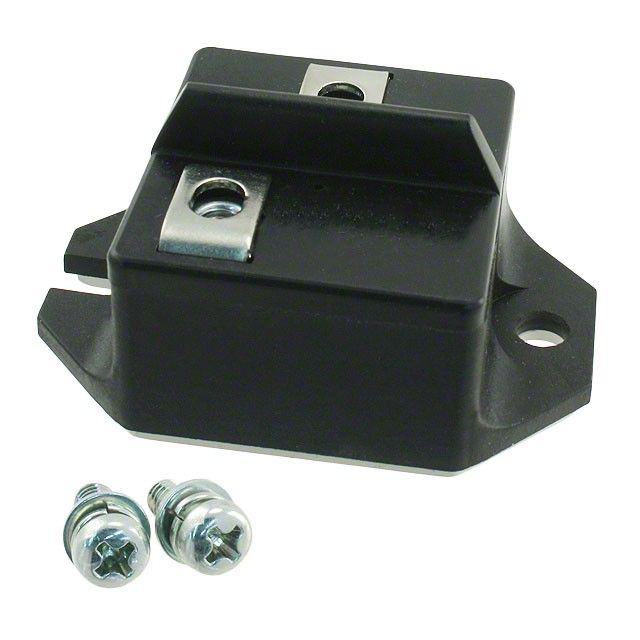

Manufacturer Part Number
CS241210
Manufacturer
Description
Diodes Rectifiers - Arrays and Modules,
1200V (1.2kV),...
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 3,405.14 | ₹ 3,405.14 |
| 10 | ₹ 3,184.42 | ₹ 31,844.20 |
| 100 | ₹ 2,760.78 | ₹ 2,76,078.00 |
| 250 | ₹ 2,577.44 | ₹ 6,44,360.00 |
| 500 | ₹ 2,448.39 | ₹ 12,24,195.00 |
| 1000 | ₹ 2,355.83 | ₹ 23,55,830.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Configuration | Single | |
| Diode Type | Standard | |
| Reverse DC Voltage(Vr) (Max) | 1200V (1.2kV) | |
| Current - Average Rectified (Io) | 100A (DC) | |
| Forward Voltage (Vf) | 1.5V @ 100A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 800ns | |
| Reverse Leakage Current @ Vr | 20mA @ 1200V | |
| Mounting Type | Chassis Mount | |
| Package / Case | - |
