Data Sheet
Attribute
Description

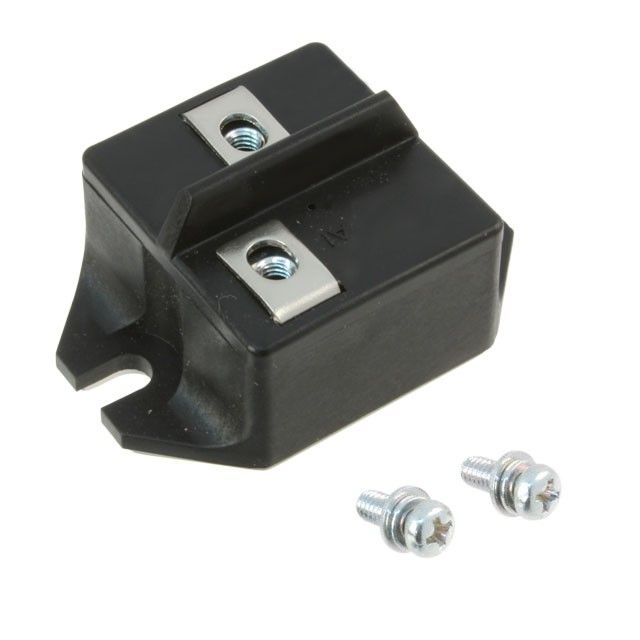

Manufacturer Part Number
CS240610
Manufacturer
Description
Diodes Rectifiers - Arrays and Modules,
600V,
100A (DC)
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 3,379.33 | ₹ 3,379.33 |
| 10 | ₹ 3,133.69 | ₹ 31,336.90 |
| 100 | ₹ 2,673.56 | ₹ 2,67,356.00 |
| 250 | ₹ 2,443.94 | ₹ 6,10,985.00 |
| 500 | ₹ 2,329.13 | ₹ 11,64,565.00 |
| 1000 | ₹ 2,198.30 | ₹ 21,98,300.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Configuration | Single | |
| Diode Type | Standard | |
| Reverse DC Voltage(Vr) (Max) | 600V | |
| Current - Average Rectified (Io) | 100A (DC) | |
| Forward Voltage (Vf) | 1.5V @ 100A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 800ns | |
| Reverse Leakage Current @ Vr | 20mA @ 600V | |
| Mounting Type | Chassis Mount | |
| Package / Case | - |
