Attribute
Description

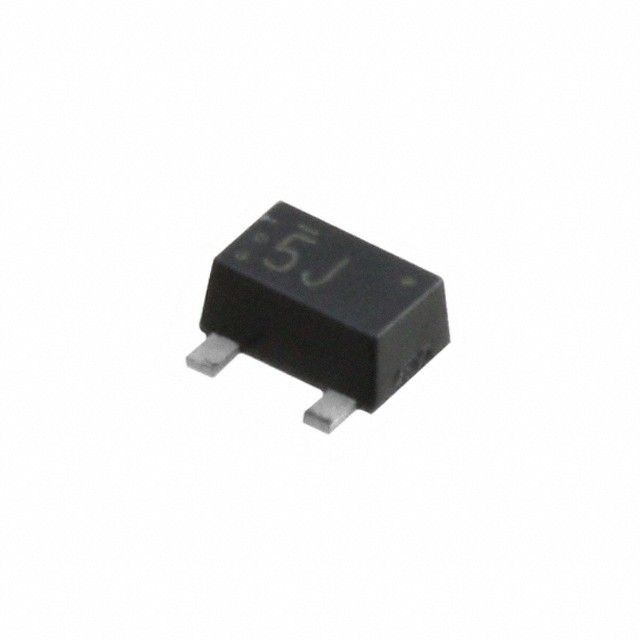

Manufacturer Part Number
DB3X316J0L
Manufacturer
Description
Diodes Rectifiers - Arrays and Modules,
30V,
100mA
Manufacturer Lead Time
27 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 3.60 | ₹ 3.60 |
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 34.80 | ₹ 34.80 |
| 10 | ₹ 22.07 | ₹ 220.70 |
| 25 | ₹ 17.00 | ₹ 425.00 |
| 100 | ₹ 13.26 | ₹ 1,326.00 |
| 500 | ₹ 9.34 | ₹ 4,670.00 |
| 1000 | ₹ 6.85 | ₹ 6,850.00 |
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 35.60 | ₹ 35.60 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Configuration | 1 Pair Common Anode | |
| Diode Type | Schottky | |
| Reverse DC Voltage(Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 100mA | |
| Forward Voltage (Vf) | 550mV @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 800ps | |
| Reverse Leakage Current @ Vr | 15µA @ 30V | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
