Attribute
Description

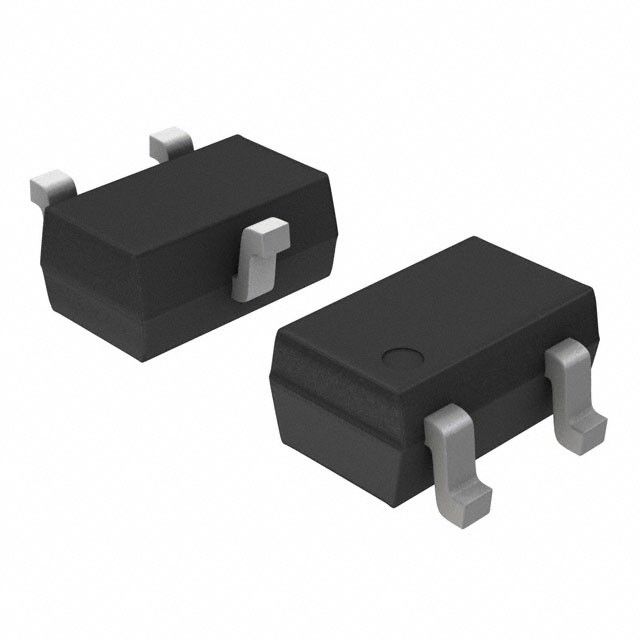

Manufacturer Part Number
BAT54AW,115
Manufacturer
Description
Schottky barrier diode
Manufacturer Lead Time
52 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 3.47 | ₹ 3.47 |
| 10 | ₹ 3.47 | ₹ 34.70 |
| 25 | ₹ 3.47 | ₹ 86.75 |
| 100 | ₹ 3.47 | ₹ 347.00 |
| 250 | ₹ 3.47 | ₹ 867.50 |
| 500 | ₹ 3.47 | ₹ 1,735.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Configuration | 1 Pair Common Anode | |
| Diode Type | Schottky | |
| Reverse DC Voltage(Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 200mA (DC) | |
| Forward Voltage (Vf) | 800mV @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 5ns | |
| Reverse Leakage Current @ Vr | 2µA @ 25V | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-70, SOT-323 |
