Attribute
Description
Manufacturer Part Number
MBR12020CTR
Manufacturer
Description
Diodes Rectifiers - Arrays and Modules,
20V,
120A (DC)
Manufacturer Lead Time
10 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 4,050.39 | ₹ 4,050.39 |
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 5,523.34 | ₹ 5,523.34 |
| 25 | ₹ 5,368.48 | ₹ 1,34,212.00 |
| 100 | ₹ 4,826.47 | ₹ 4,82,647.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Configuration | - | |
| Diode Type | Schottky, Reverse Polarity | |
| Reverse DC Voltage(Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 120A (DC) | |
| Forward Voltage (Vf) | 650mV @ 120A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current @ Vr | 3mA @ 20V | |
| Mounting Type | Chassis Mount | |

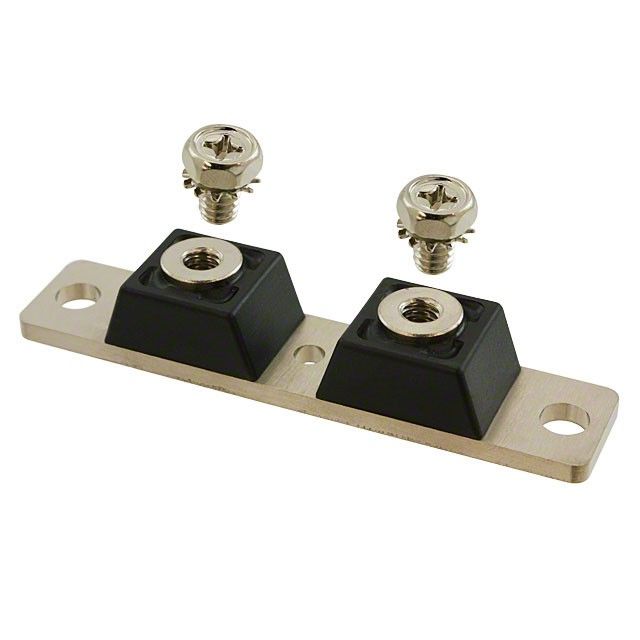

| Package / Case | Twin Tower |
