APT77N60JC3
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 600V | |
| Continuous Drain Current at 25C | 77A | |
| Max On-State Resistance | 35 mOhm @ 60A, 10V | |
| Max Threshold Gate Voltage | 3.9V @ 5.4mA | |
| Gate Charge at Vgs | 640nC @ 10V | |
| Input Cap at Vds | 13600pF @ 25V | |
| Maximum Power Handling | 568W | |
| Attachment Mounting Style | Chassis Mount | |

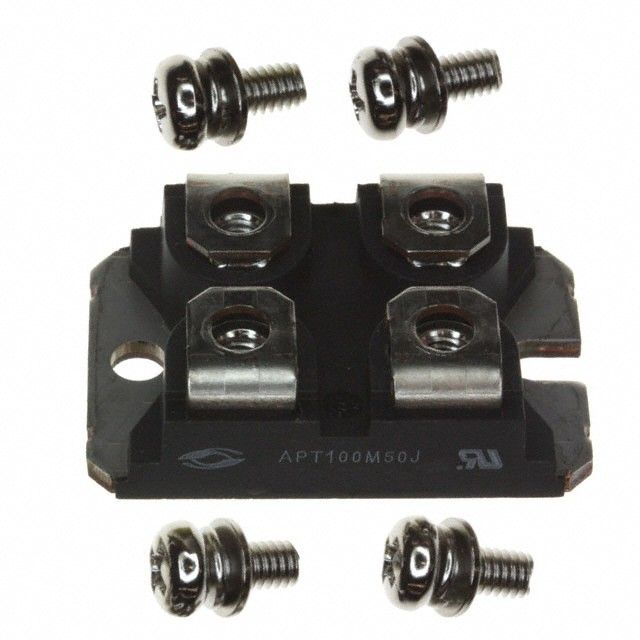

| Component Housing Style | SOT-227-4, miniBLOC |
Description
Measures resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 77A at 25°C. Supports Vdss drain-to-source voltage rated at 600V. Accommodates FET classification identified as MOSFET N-Channel, Metal Oxide. Upholds 640nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 13600pF @ 25V at Vds for optimal performance. Mounting style Chassis Mount for structural integrity. Enclosure/case SOT-227-4, miniBLOC providing mechanical and thermal shielding. Peak power 568W for device protection. Peak Rds(on) at Id 640nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 35 mOhm @ 60A, 10V for MOSFET criteria. Peak Vgs(th) at Id 3.9V @ 5.4mA for MOSFET threshold level.
