Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 600V | |
| Continuous Drain Current at 25C | 5.7A (Tc) | |
| Max On-State Resistance | 750 mOhm @ 2A, 10V | |
| Max Threshold Gate Voltage | 3.5V @ 170µA | |
| Gate Charge at Vgs | 17.2nC @ 10V | |
| Input Cap at Vds | 373pF @ 100V | |
| Maximum Power Handling | 48W | |
| Attachment Mounting Style | Through Hole | |

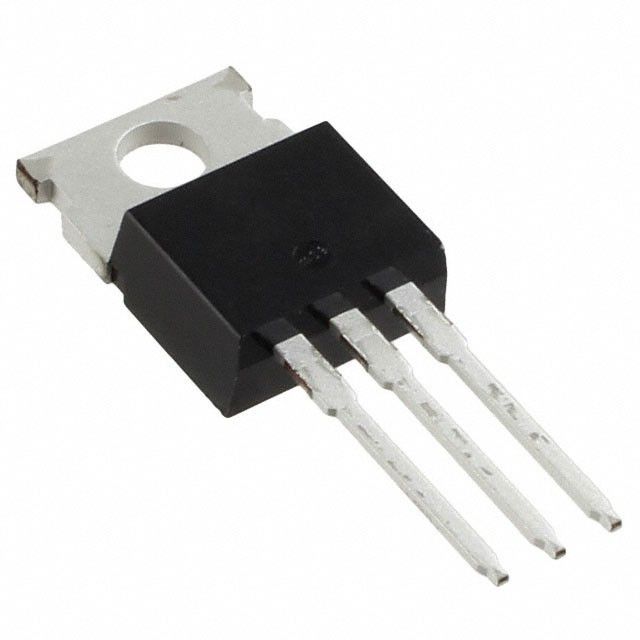

| Component Housing Style | TO-220-3 |
Description
Measures resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 5.7A (Tc) at 25°C. Supports Vdss drain-to-source voltage rated at 600V. Accommodates FET classification identified as MOSFET N-Channel, Metal Oxide. Upholds 17.2nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 373pF @ 100V at Vds for optimal performance. Mounting style Through Hole for structural integrity. Enclosure/case TO-220-3 providing mechanical and thermal shielding. Peak power 48W for device protection. Peak Rds(on) at Id 17.2nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 750 mOhm @ 2A, 10V for MOSFET criteria. Peak Vgs(th) at Id 3.5V @ 170µA for MOSFET threshold level.
