Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | N and P-Channel | |
| Drain-Source Breakdown Volts | 60V | |
| Continuous Drain Current at 25C | 3.5A, 3A | |
| Max On-State Resistance | 60 mOhm @ 12A, 10V | |
| Max Threshold Gate Voltage | 3V @ 250µA | |
| Gate Charge at Vgs | 10nC @ 10V | |
| Input Cap at Vds | 540pF @ 30V | |
| Maximum Power Handling | 2W | |
| Attachment Mounting Style | Surface Mount | |

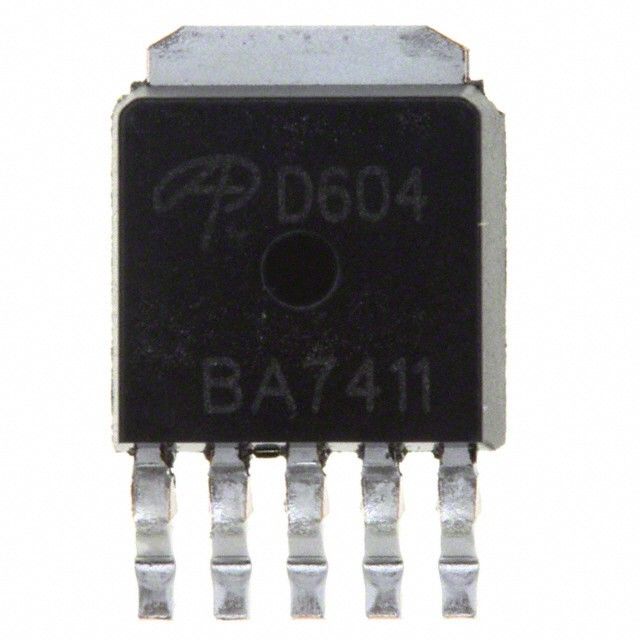

| Component Housing Style | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
Description
Measures resistance at forward current N and P-Channel for LED or diode evaluation. Supports a continuous drain current (Id) of 3.5A, 3A at 25°C. Supports Vdss drain-to-source voltage rated at 60V. Accommodates FET classification identified as N and P-Channel. Upholds 10nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 540pF @ 30V at Vds for optimal performance. Mounting style Surface Mount for structural integrity. Enclosure/case TO-252-5, DPak (4 Leads + Tab), TO-252AD providing mechanical and thermal shielding. Peak power 2W for device protection. Peak Rds(on) at Id 10nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 60 mOhm @ 12A, 10V for MOSFET criteria. Peak Vgs(th) at Id 3V @ 250µA for MOSFET threshold level.
