Data Sheet
Attribute
Description
Manufacturer Part Number
H5007
Manufacturer
Description

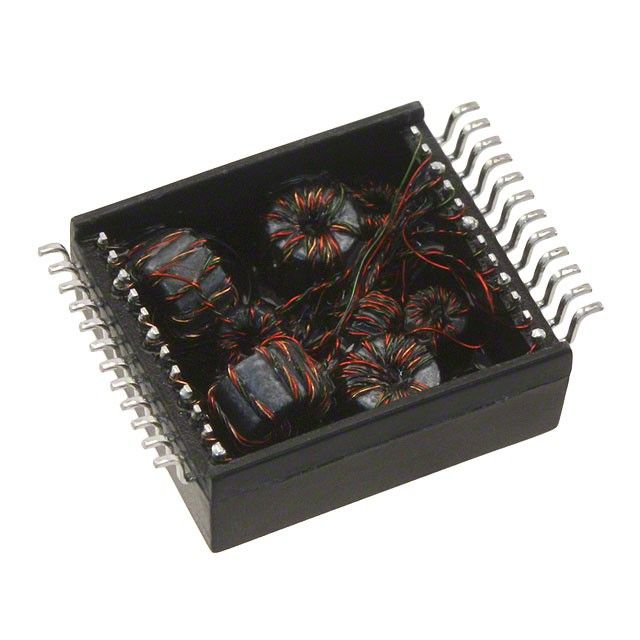

Pulse Transformer,
Surface Mount
Manufacturer Lead Time
1 week
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 812.15 | ₹ 812.15 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Transformer Type | Isolation and Data Interface (Encapsulated) | |
| Inductance | - | |
| Turns Ratio - Primary:Secondary | 1CT : 1CT | |
| E.T. | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 17.53mm L x 12.20mm W | |
| Height - Seated (Max) | 5.51mm |
