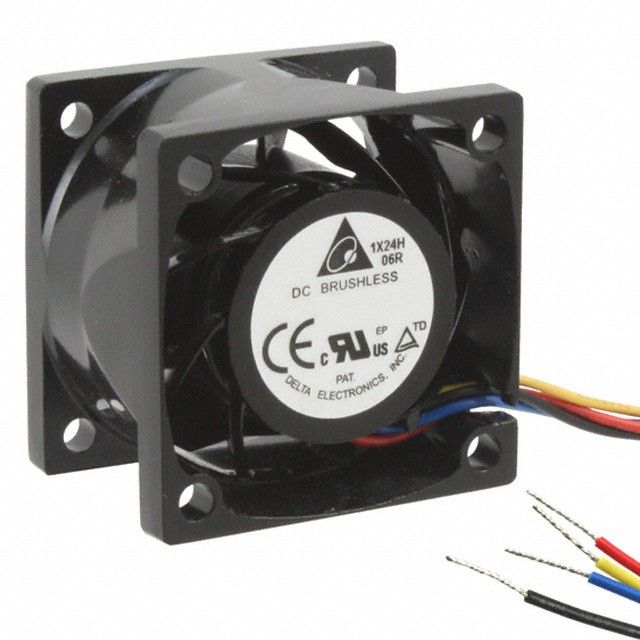

FFB0412UHN-SP4Z
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Variant | Tubeaxial | |
| DC Fan Bearing Mode | Ball | |
| Max Voltage Specification | 12VDC | |
| Ventilation Rate | 26.5 CFM (0.750m³/min) | |
| Airflow Static Pressure | 3.150 in H2O (784.7 Pa) | |
| Electrical Noise Level | 59.9 dB(A) | |
| Power Rating | 10.08W | |
| Revolutions Per Minute | 23000 RPM | |
| Ambient Temp Range | 14 ~ 158°F (-10 ~ 70°C) | |
| Circuit End Method | 4 Wire Leads | |
| Package Size Specs | Square - 40mm L x 40mm H x 28mm W |
Description
Provides airflow rated at 26.5 CFM (0.750m³/min) for effective cooling. Measures resistance at forward current Tubeaxial for LED or diode evaluation. Supports high-level output current indicated as 3.150 in H2O (784.7 Pa). Designed with a DC fan bearing type indicated as Ball for optimal airflow. Includes a DC fan type rated at Tubeaxial for optimal cooling efficiency. Sound level 59.9 dB(A) for acoustic or electronic efficiency. Operating temperature 14 ~ 158°F (-10 ~ 70°C) for thermal stability. Energy 10.08W for device power needs. RPM 23000 RPM for motors or mechanical systems. Dimensions Square - 40mm L x 40mm H x 28mm W for mechanical or electrical components. Dimension measurement Square - 40mm L x 40mm H x 28mm W for component details. Static pressure measurement 3.150 in H2O (784.7 Pa) for fluid or air systems. Termination method 4 Wire Leads for electrical or mechanical linkage. Peak Vce(on) at Vge 12VDC for transistor parameters. Voltage specification 12VDC for components.
