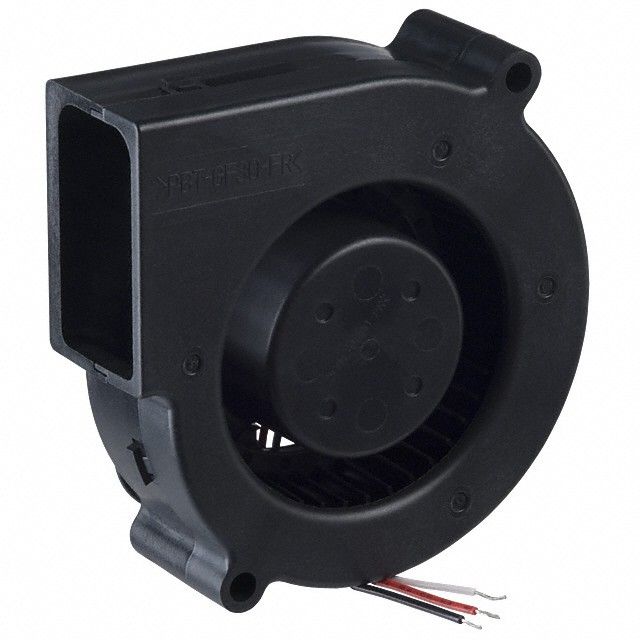

BFB0712M-AF00
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Variant | Blower | |
| DC Fan Bearing Mode | Ball | |
| Max Voltage Specification | 12VDC | |
| Ventilation Rate | 11.3 CFM (0.320m³/min) | |
| Airflow Static Pressure | 0.478 in H2O (119.1 Pa) | |
| Electrical Noise Level | 43 dB(A) | |
| Power Rating | 1.92W | |
| Revolutions Per Minute | 3400 RPM | |
| Ambient Temp Range | 14 ~ 158°F (-10 ~ 70°C) | |
| Circuit End Method | 3 Wire Leads | |
| Package Size Specs | Square - 75.7mm L x 75.7mm H x 25mm W |
Description
Provides airflow rated at 11.3 CFM (0.320m³/min) for effective cooling. Measures resistance at forward current Blower for LED or diode evaluation. Supports high-level output current indicated as 0.478 in H2O (119.1 Pa). Designed with a DC fan bearing type indicated as Ball for optimal airflow. Includes a DC fan type rated at Blower for optimal cooling efficiency. Sound level 43 dB(A) for acoustic or electronic efficiency. Operating temperature 14 ~ 158°F (-10 ~ 70°C) for thermal stability. Energy 1.92W for device power needs. RPM 3400 RPM for motors or mechanical systems. Dimensions Square - 75.7mm L x 75.7mm H x 25mm W for mechanical or electrical components. Dimension measurement Square - 75.7mm L x 75.7mm H x 25mm W for component details. Static pressure measurement 0.478 in H2O (119.1 Pa) for fluid or air systems. Termination method 3 Wire Leads for electrical or mechanical linkage. Peak Vce(on) at Vge 12VDC for transistor parameters. Voltage specification 12VDC for components.
