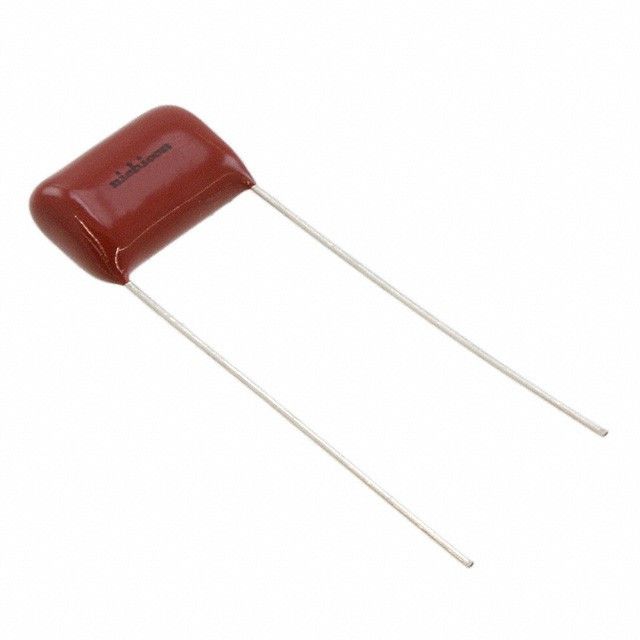

QXP2K103KRPT
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Storage Capacity Electrical | 10000pF | |
| AC Voltage Max | 250V | |
| DC Voltage Max | 800V | |
| Insulating Dielectric Type | Polypropylene (PP), Metallized | |
| Accuracy Tolerance Percentage | ±10% | |
| Series Resistance Equivalent | - | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Radial | |
| Package Size Specs | 0.630" L x 0.244" W (16.00mm x 6.20mm) | |
| Maximum Mounted Height | 0.465" (11.80mm) | |
| Circuit End Method | PC Pins | |
| Pin Lead Gap | 0.492" (12.50mm) |
Description
Offers a capacitance level rated at 10000pF to ensure circuit stability. Made with dielectric material identified as Polypropylene (PP), Metallized. Maximum seated height of 0.465" (11.80mm) for components mounted on the board. Lead spacing 0.492" (12.50mm) for compliance with PCB design. Mounting style Through Hole for structural integrity. Operating temperature -40°C ~ 105°C for thermal stability. Enclosure/case Radial providing mechanical and thermal shielding. Dimensions 0.630" L x 0.244" W (16.00mm x 6.20mm) for mechanical or electrical components. Dimension measurement 0.630" L x 0.244" W (16.00mm x 6.20mm) for component details. Termination method PC Pins for electrical or mechanical linkage. Tolerance ±10% for precision in manufacturing. Peak Vce(on) at Vge 10000pF for transistor parameters. Maximum AC voltage rating 250V for device specifications. Maximum DC voltage rating 800V for components.
