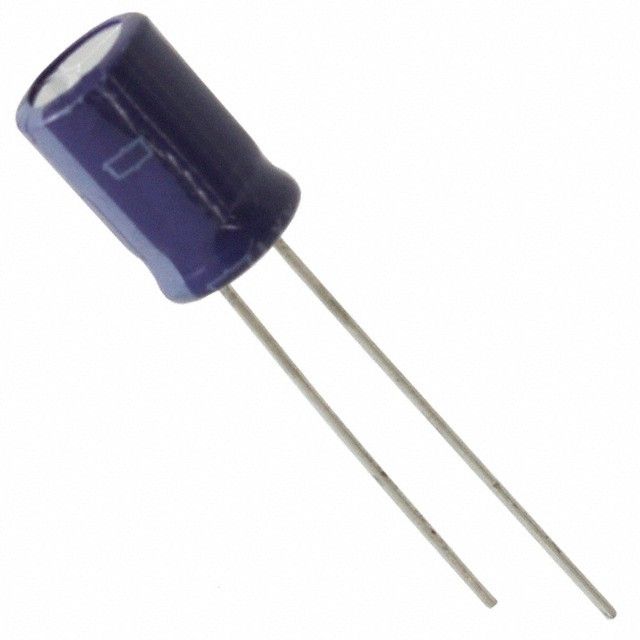

ELXY160ELL271MH12D
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Storage Capacity Electrical | 270uF | |
| Max Voltage Specification | 16V | |
| Accuracy Tolerance Percentage | ±20% | |
| Series Resistance Equivalent | - | |
| Expected Life at Temperature | 3000 Hrs @ 105°C | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Ripple I | 445mA | |
| AC Resistance Value | 170 mOhm | |
| Pin Lead Gap | 0.138" (3.50mm) | |
| Package Size Specs | 0.315" Dia (8.00mm) | |
| Maximum Mounted Height | 0.472" (12.00mm) | |
| SMD Pad Footprint | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Radial, Can |
Description
Offers a capacitance level rated at 270uF to ensure circuit stability. Measures resistance at forward current 16V for LED or diode evaluation. Maximum seated height of 0.472" (12.00mm) for components mounted on the board. Set with 170 mOhm impedance to ensure signal integrity. Lead spacing 0.138" (3.50mm) for compliance with PCB design. Functions with a lifespan of 3000 Hrs @ 105°C at designated temperature. Mounting style Through Hole for structural integrity. Operating temperature -55°C ~ 105°C for thermal stability. Enclosure/case Radial, Can providing mechanical and thermal shielding. Ripple current 445mA for capacitor or inductor specifications. Dimensions 0.315" Dia (8.00mm) for mechanical or electrical components. Dimension measurement 0.315" Dia (8.00mm) for component details. Tolerance ±20% for precision in manufacturing. Peak Vce(on) at Vge 270uF for transistor parameters. Voltage specification 16V for components.
