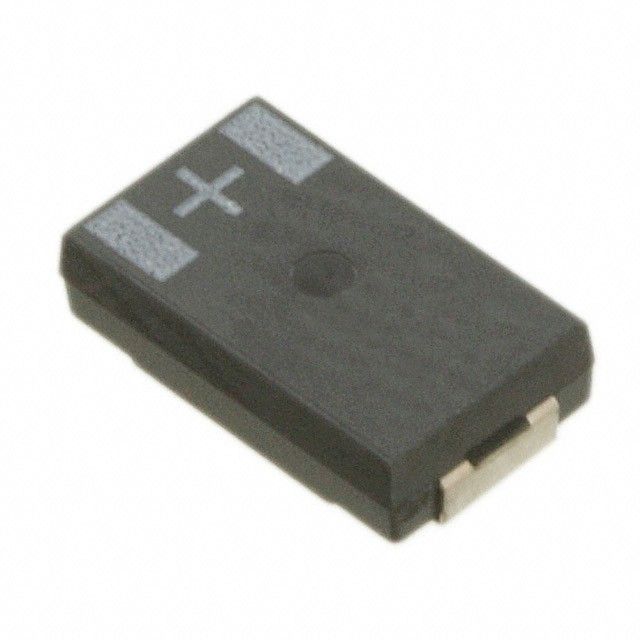

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Storage Capacity Electrical | 33uF | |
| Max Voltage Specification | 6.3V | |
| Accuracy Tolerance Percentage | ±20% | |
| Series Resistance Equivalent | 25 mOhm | |
| Expected Life at Temperature | 1000 Hrs @ 105°C | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Ripple I | 1.8A | |
| AC Resistance Value | - | |
| Pin Lead Gap | - | |
| Package Size Specs | 0.287" L x 0.169" W (7.30mm x 4.30mm) | |
| Maximum Mounted Height | 0.075" (1.90mm) | |
| SMD Pad Footprint | 0.287" L x 0.169" W (7.30mm x 4.30mm) | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 2917 (7343 Metric) |
Description
Offers a capacitance level rated at 33uF to ensure circuit stability. Measures resistance at forward current 6.3V for LED or diode evaluation. Offers ESR rated at 25 mOhm. Maximum seated height of 0.075" (1.90mm) for components mounted on the board. Functions with a lifespan of 1000 Hrs @ 105°C at designated temperature. Mounting style Surface Mount for structural integrity. Operating temperature -40°C ~ 105°C for thermal stability. Enclosure/case 2917 (7343 Metric) providing mechanical and thermal shielding. Ripple current 1.8A for capacitor or inductor specifications. Dimensions 0.287" L x 0.169" W (7.30mm x 4.30mm) for mechanical or electrical components. Dimension measurement 0.287" L x 0.169" W (7.30mm x 4.30mm) for component details. Surface mount pad dimensions 0.287" L x 0.169" W (7.30mm x 4.30mm) for PCB layout. Tolerance ±20% for precision in manufacturing. Peak Vce(on) at Vge 33uF for transistor parameters. Voltage specification 6.3V for components.
