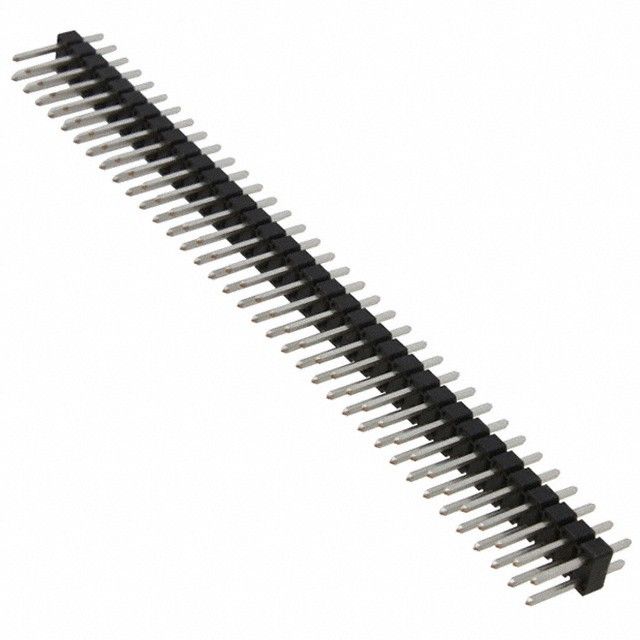

68438-472HLF
Data Sheet
Attribute
Description
Manufacturer Part Number
68438-472HLF
Manufacturer
Description
Rectangular Connectors ,
Male Pin ,
72 Positions,
Tin Finish
Manufacturer Lead Time
6 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Interface Connector Category | Header, Unshrouded | |
| Pin Interface Category | Male Pin | |
| Switch Position Options | 72 | |
| Component Spacing Distance | 0.100 (2.54mm) | |
| Grid Row Count | 2 | |
| Row Pin Gap | 0.100 (2.54mm) | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Solder | |
| Pin Surface Treatment | Tin | |
| Pin Coating Depth | 100µin (2.54µm) |
Description
Measures resistance at forward current Header, Unshrouded for LED or diode evaluation. Incorporates a connector type labeled as Header, Unshrouded. Includes contact finish plated at Tin to enhance conductivity. Presents contact finish thickness recorded at 100µin (2.54µm). Utilizes a contact type identified as Male Pin. Mounting style Through Hole for structural integrity. Total positions 72 for switches or mechanical elements. Total rows 2 for matrix or display setup. Spacing 0.100 (2.54mm) for component arrangement or connector alignment. Row distance 0.100 (2.54mm) for connectors or PCB arrangement. Termination method Solder for electrical or mechanical linkage.
