Description

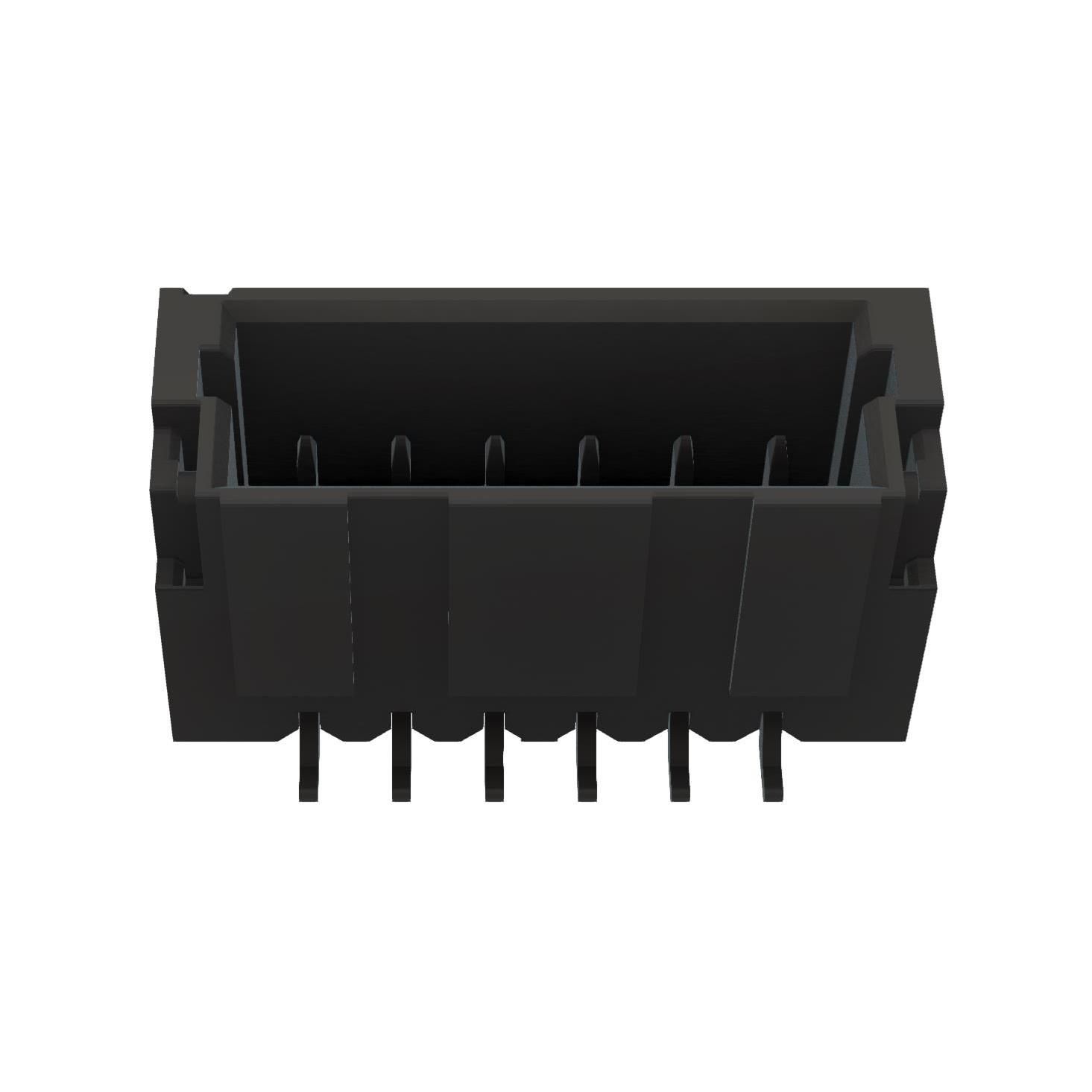

Measures resistance at forward current Tariff may apply if shipping to the United States for LED or diode evaluation. Provides connector spacing specified as 0.049" (1.25mm) for appropriate PCB arrangement. Incorporates a connector type labeled as Header. Features mating contact finish rated at Tin. Delivers post contact finish characterized by Tin. Contains mating finish thickness indicated as 39.4µin (1.00µm). Supplies mating contact length noted at 0.086" (2.20mm). Made with contact material rated as Brass. Designed with contact shape categorized as Square. Utilizes a contact type identified as Male Pin. Defines current rating in amps as 1A. Employs fastening type identified as Push-Pull. Furnished with features classified as Board Guide, Solder Retention. Offered in Beige insulation color for identification purposes. Insulation height of 0.098" (2.50mm) for adequate electrical clearance. Made with Polyamide (PA), Nylon insulation material for longevity. Rating UL94 V-0 for compliance with flammability safety standards. Mounting style Surface Mount, Right Angle for structural integrity. Total positions 6 for switches or mechanical elements. Loaded positions All for mechanical assembly. Total rows 1 for matrix or display setup. Operating temperature -35°C ~ 85°C for thermal stability. Enclosure Bulk for component protection or transport. Alignment pitch 0.049" (1.25mm) for connection with counterpart. Product condition Active for availability and lifecycle. Product or component classification series DF14. Coverage Shrouded - 4 Wall for insulation and safety. Style Board to Cable/Wire for design or arrangement. Classification for tariffs Tariff may apply if shipping to the United States regarding import/export. Termination method Solder for electrical or mechanical linkage. Peak Vce(on) at Vge Tariff may apply if shipping to the United States for transistor parameters. Voltage specification 150VAC for components.
