Attribute
Description

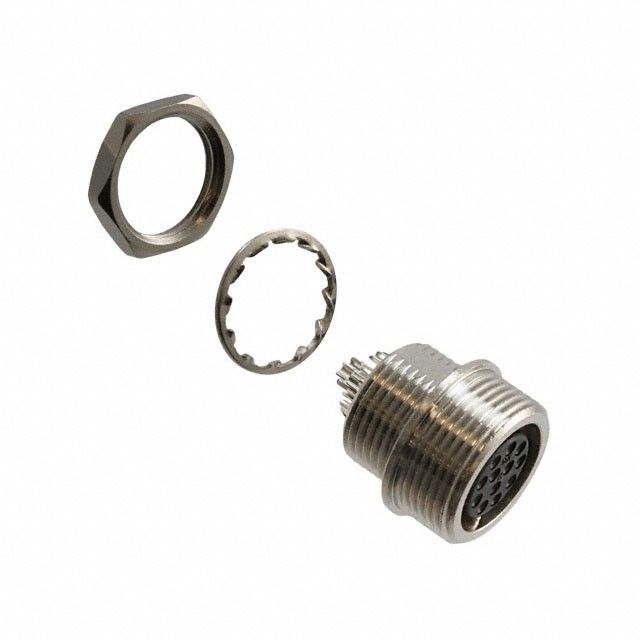

Manufacturer Part Number
HR10-10R-12P(73)
Manufacturer
Description
RECEPTACLE W/PIN INSERT (12CON)
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Interface Connector Category | Receptacle, Male Pins | |
| Switch Position Options | 12 | |
| Insert Shell Dimension | 10 | |
| Military Shell Standard | - | |
| Attachment Mounting Style | Panel Mount, Bulkhead - Rear Side Nut | |
| Circuit End Method | Solder Cup | |
| Secure Attachment Method | Push-Pull | |
| Installation Orientation | Keyed | |
| Dust Water Resistance Rating | - | |
| Housing Material and Surface | Brass and Zinc, Nickel Plated | |
| Pin Surface Treatment | Gold |
Description
Measures resistance at forward current Receptacle, Male Pins for LED or diode evaluation. Incorporates a connector type labeled as Receptacle, Male Pins. Includes contact finish plated at Gold to enhance conductivity. Employs fastening type identified as Push-Pull. Mounting style Panel Mount, Bulkhead - Rear Side Nut for structural integrity. Total positions 12 for switches or mechanical elements. Positioning Keyed for correct installation or signal alignment. Material and finish of shell Brass and Zinc, Nickel Plated for resilience. Insert shell dimension 10 for connector compatibility. Termination method Solder Cup for electrical or mechanical linkage.
